Gauge Control Module

When a problem or malfunction is detected, the CMBS indicator comes on. With some problems or malfunctions, the condition is displayed on the MID.

When the CMBS is turned off by the CMBS OFF switch, the CMBS indicator comes on, and the MID indicates that the CMBS is off.

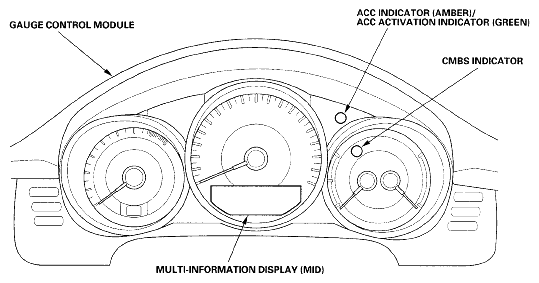

Fig 1: Identifying Gauge Control Module
G05498336Courtesy of AMERICAN HONDA MOTOR CO., INC.
