Initialize function

When the headlight switch is ON, the swivel angle is initialized every time in spite of the ignition switch ON (II) or OFF. The right headlight aiming moves right 22.2 degree and the left headlight aiming moves right 0.8 degree, then returns the headlight aiming to center and complete the initialization.

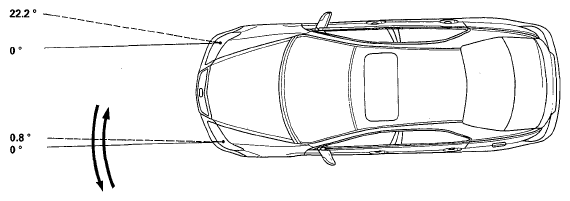

Fig 1: Identifying Headlight Aiming Angle
G05496906Courtesy of AMERICAN HONDA MOTOR CO., INC.
