Adaptive Cruise Control System
>>
System Description
>>
Basic Adaptive Cruise Control (ACC) Pattern
Basic Adaptive Cruise Control (ACC) Pattern
Radar detection: Max. 0.06 mile (100 m) ahead in a 16 degree field of view
Vehicle operating speed: 25-90 mph (40-145 km/h)

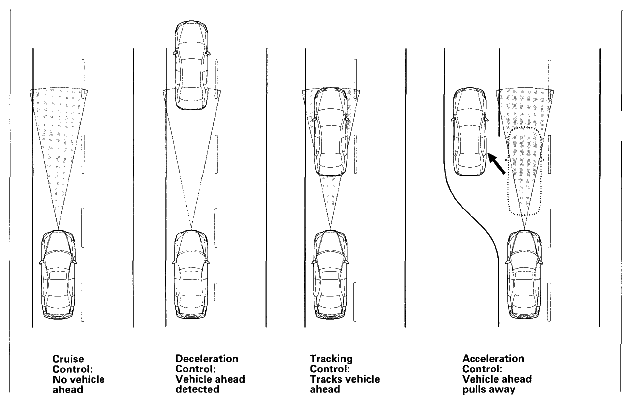

Fig 1: Basic Adaptive Cruise Control Pattern Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
