ATF Cooler Replacement

  1. Remove the bumper assembly (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the harness clamps, disconnect the ATF cooler hoses from the ATF cooler, and remove the ATF cooler (A) and cooler joint line (B).

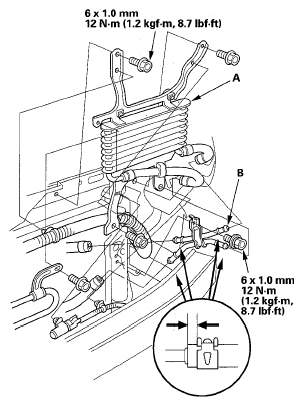

    Fig 1: ATF Cooler With Torque Specifications
    G05445221Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove ATF cooler hoses (A) and mounting brackets (B).
    Fig 2: ATF Cooler, Hoses And Mounting Brackets With Torque Specifications
    G05445222Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the mounting bracket on the new ATF cooler (C).
  5. Slide the ATF cooler hoses over the ATF cooler lines until the hose ends contact the white dot (D) on the ATF cooler lines, and secure the hose with the clips (E) at 6-8 mm (0.2-0.3 in.) (F) from the hose end.
  6. Secure the ATF cooler hose with the clamp (G) at the white line (H) on the hose.
  7. Install the joint line and ATF cooler on the body, and install the harness clamp on the bracket.
  8. Connect the ATF cooler hoses to the ATF cooler lines, and secure the hose with the clips (see ATF COOLER HOSE REPLACEMENT ).
  9. Install the bumper assembly (see FRONT BUMPER REMOVAL/INSTALLATION ).
