Component Location Index

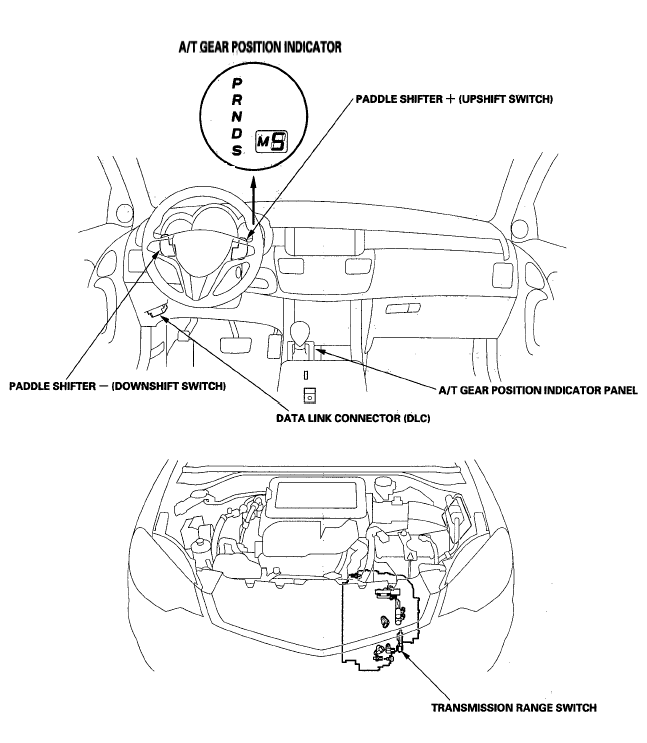

Fig 1: Identifying A/T Gear Position Indicator Components Location

G05445251

Courtesy of AMERICAN HONDA MOTOR CO., INC.
