DTC P1744: Problem in Shift Control System; Shift Valve E Stuck ON: Notes

Fig 1: DTC P1744 Shift Valve E Operating Conditions

Fig 2: Gear Position Vs Shift Status Graph

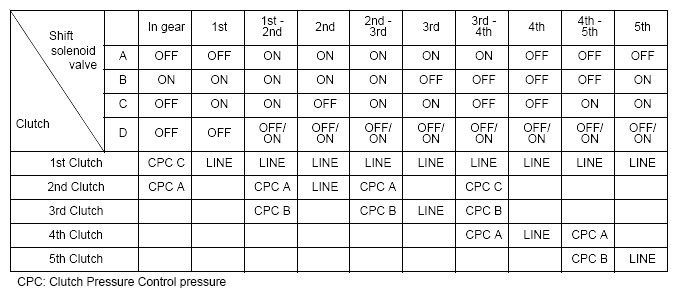

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 3: Shift Solenoid Valve Output (D Position)
