Intake Air Resonator Removal/Installation

  1. Do the battery removal procedure (see REMOVAL ).
  2. Remove the under-hood sub fuse/relay box (A) from the battery base.

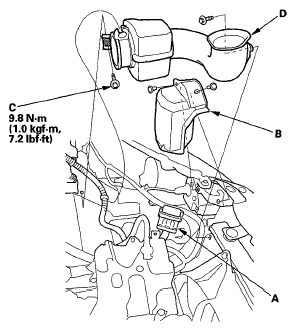

    Fig 1: Resonator Replacement Components With Torque Specifications
    G05444789Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the air intake cover (B).
  4. Remove the bolts (C), then remove the resonator (D).
  5. Install the parts in the reverse order of removal.
  6. Do the battery installation procedure (see INSTALLATION ).
