Upper Torque Rod Replacement

  1. Remove the torque rod stiffener (A) and upper torque rod (B).

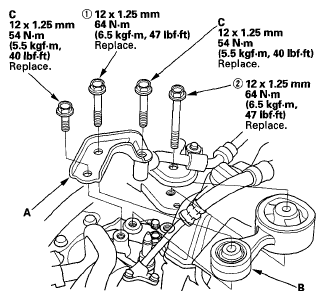

    Fig 1: Torque Rod Stiffener And Upper Torque Rod With Torque Specifications
    G05459550Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the upper torque rod and torque rod stiffener, and tighten the new stiffener mounting bolts (C), then tighten the new upper torque rod mounting bolts in the numbered sequence shown.
