Lower Torque Rod Replacement

  1. Loosen the upper torque rod mounting bolt (A).
    Fig 1: Identifying Upper Torque Rod Mounting Bolt
    G05459547Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the lift to full height.
  3. Remove the lower torque rod (A).

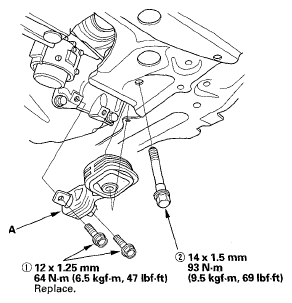

    Fig 2: Lower Torque Rod With Torque Specifications
    G05459548Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the lower torque rod, then tighten the new lower torque rod mounting bolts in the numbered sequence shown.
  5. Lower the vehicle on the lift.
  6. Tighten the upper torque rod mounting bolt.
Fig 3: Upper Torque Rod Mounting Bolt With Torque Specifications
G05459549Courtesy of AMERICAN HONDA MOTOR CO., INC.
