CMP Pulse Plate B Replacement

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).
  2. Remove the camshaft position (CMP) sensor B (see CMP SENSOR B REPLACEMENT ).
  3. Hold the camshaft with an open-end wrench, then loosen the bolt.
    Fig 1: Loosening Camshaft Bolt
    G05444412Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the camshaft position (CMP) pulse plate B.

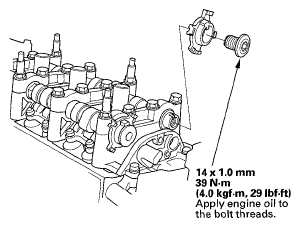

    Fig 2: Camshaft Position Pulse Plate (B) With Torque Specifications
    G05444413Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the CMP pulse plate B in the reverse order of removal.
