Circuit Diagram

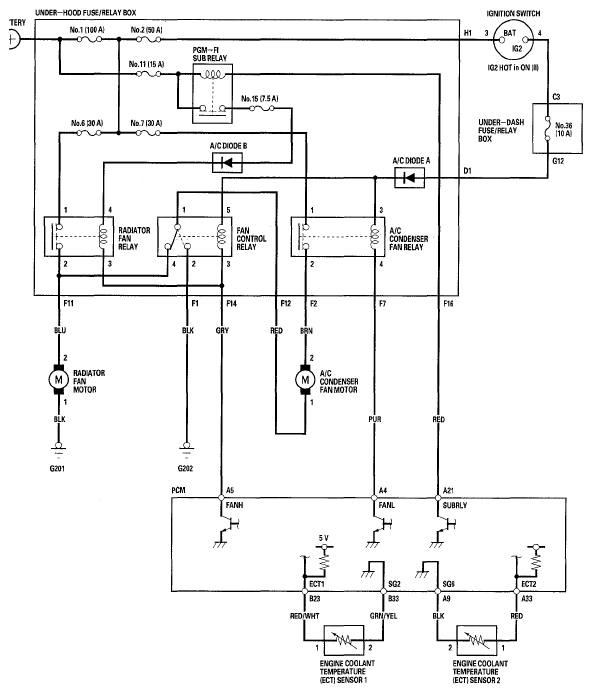

Fig 1: Fan Controls Circuit Diagram

G05444464

Courtesy of AMERICAN HONDA MOTOR CO., INC.
