Turbocharger Boost Control Solenoid Valve

This solenoid valve controls pressure to the turbocharger boost control valve. The solenoid itself is controlled by the PCM. The following information describes the ports on the valve and where the pressure flows when the solenoid switches the valve on and off.

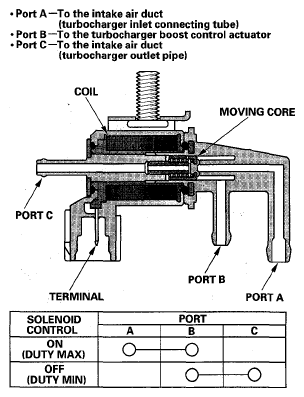

Fig 1: Identifying Turbocharger Boost Control Solenoid Valve Sectional View
G05459621Courtesy of AMERICAN HONDA MOTOR CO., INC.
