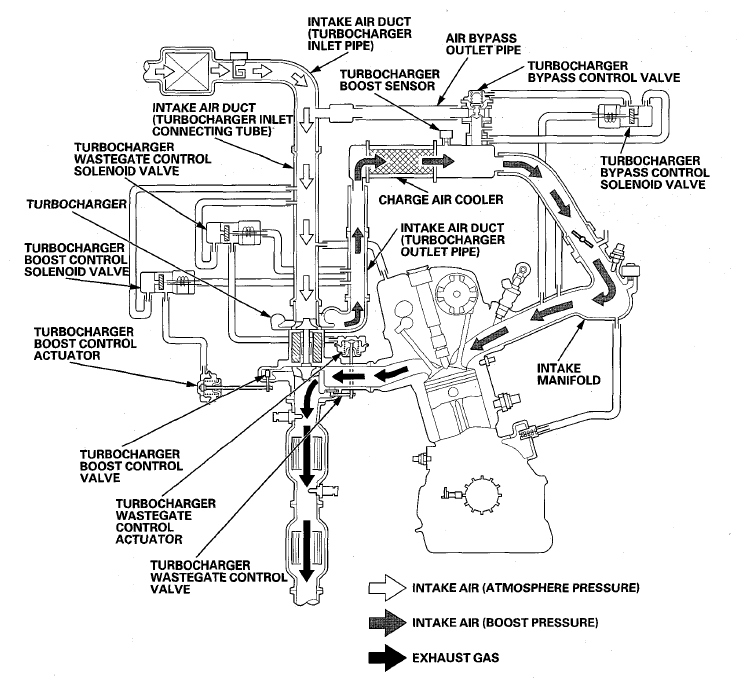

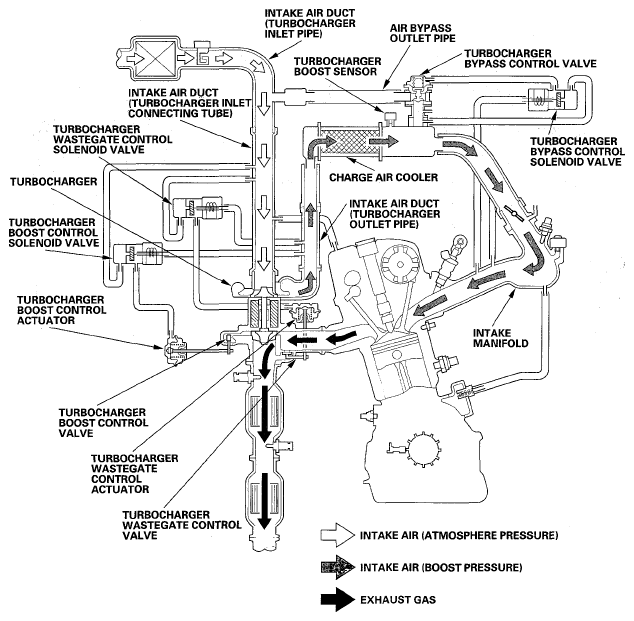

Turbocharger Control System Diagram
The turbocharger control system controls the boost pressure and the response of the turbocharger. The PCM controls the turbocharger wastegate control solenoid valve (duty controlled), the turbocharger bypass control solenoid valve (on/off controlled), and the turbocharger boost control valve (duty controlled). The boost pressure is monitored by the turbocharger boost sensor.
