PCM Circuit Diagram

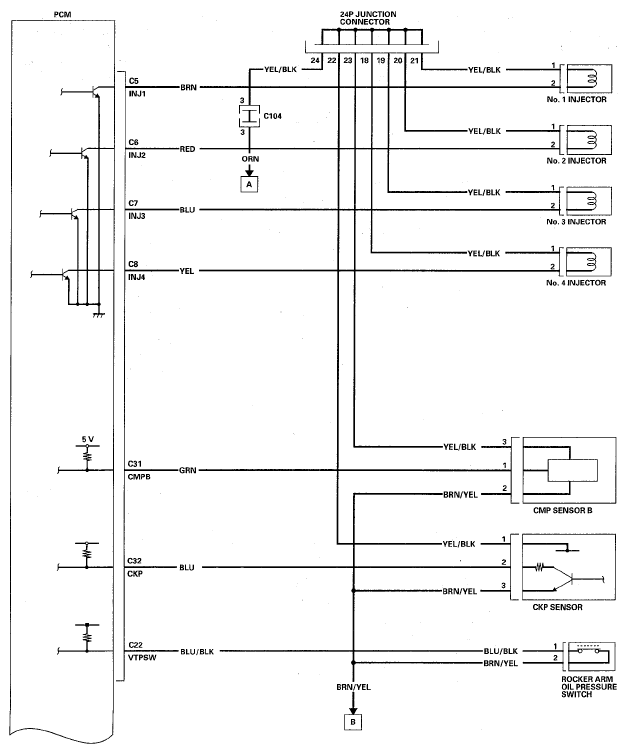

Fig 1: PCM Circuit Diagram (1 Of 14)

G05459630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

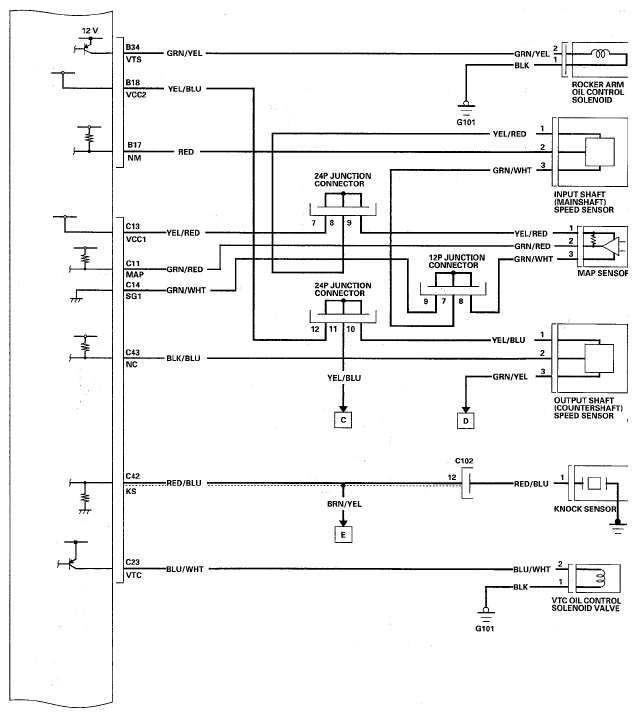

Fig 2: PCM Circuit Diagram (2 Of 14)

G05459631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

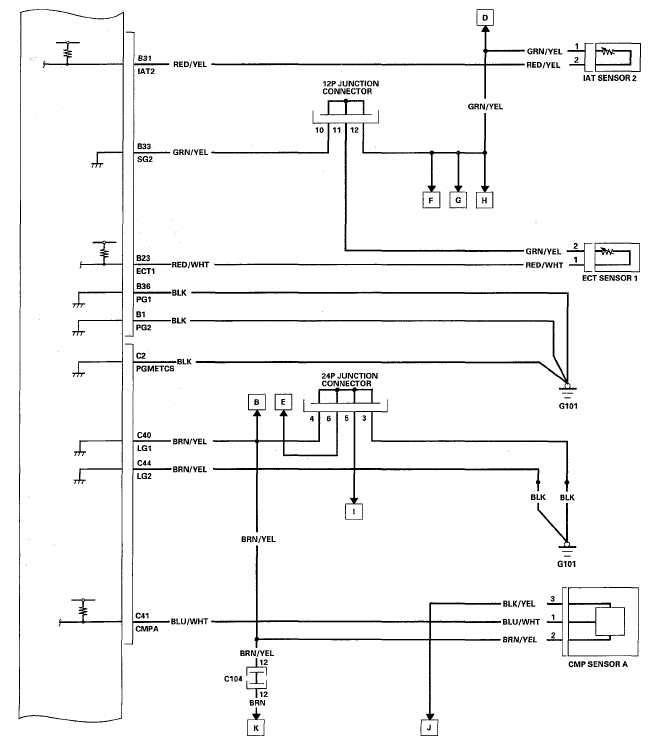

Fig 3: PCM Circuit Diagram (3 Of 14)

G05459632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

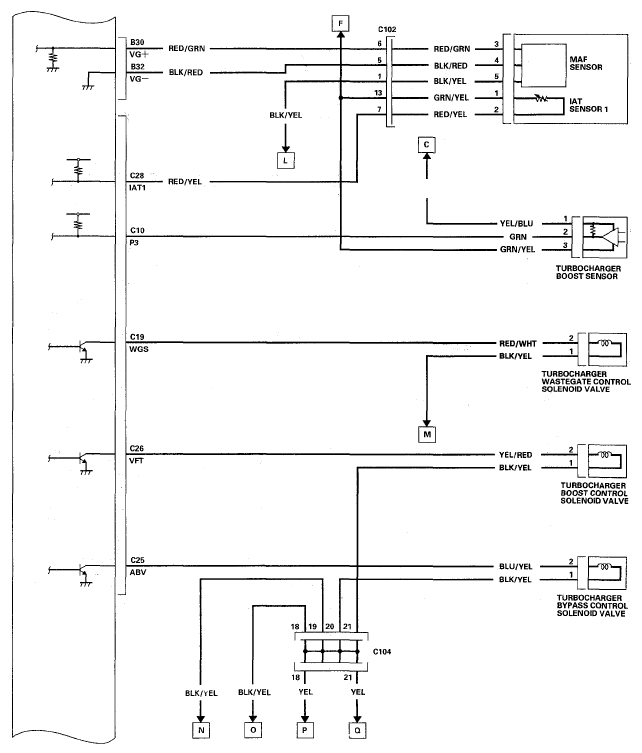

Fig 4: PCM Circuit Diagram (4 Of 14)

G05459633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

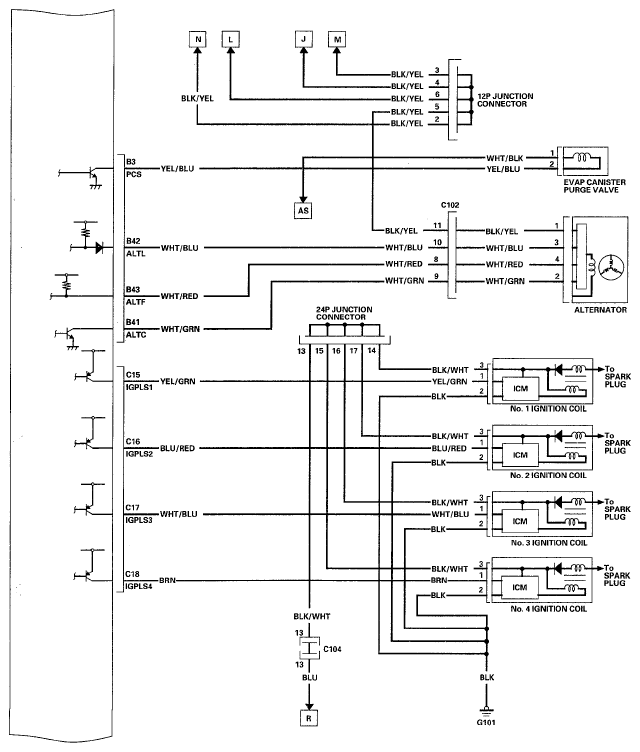

Fig 5: PCM Circuit Diagram (5 Of 14)

G05459634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

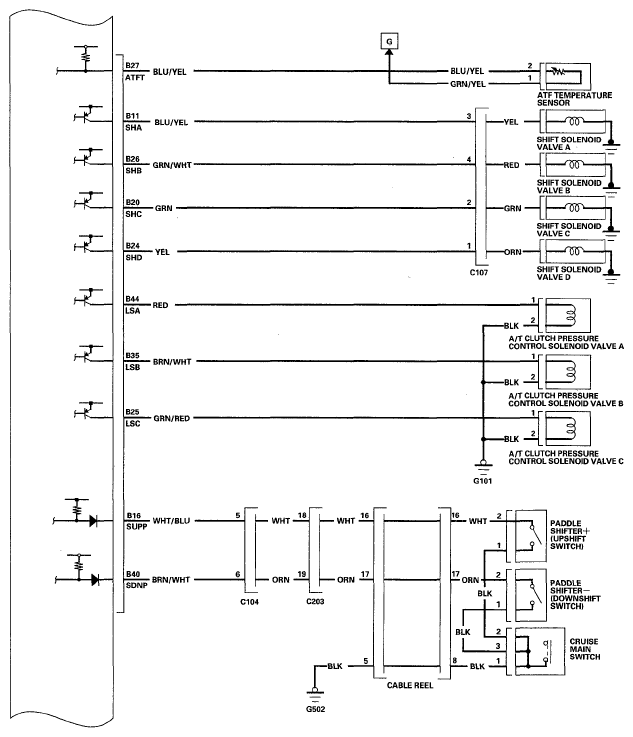

Fig 6: PCM Circuit Diagram (6 Of 14)

G05459635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

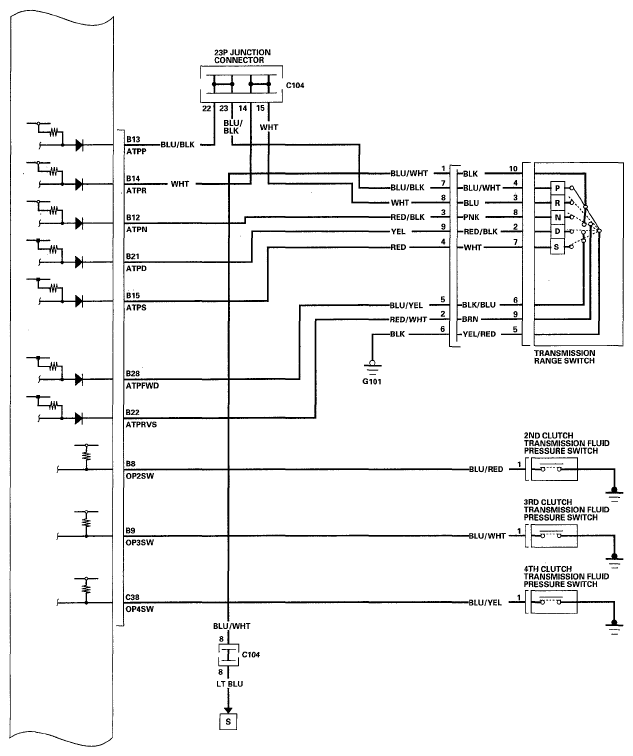

Fig 7: PCM Circuit Diagram

G05459636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

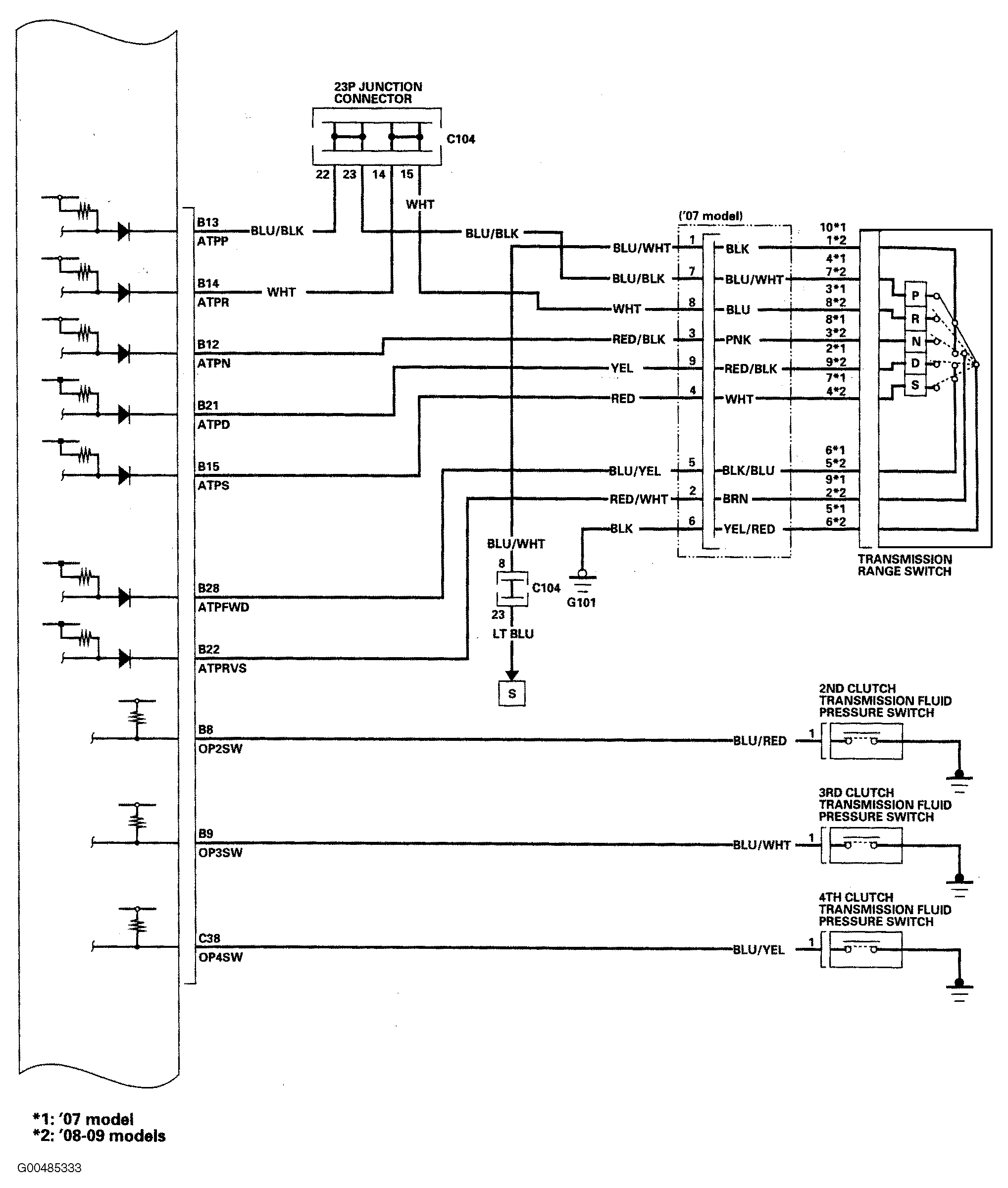

Fig 8: PCM Circuit Diagram (7 Of 14)

G00485333

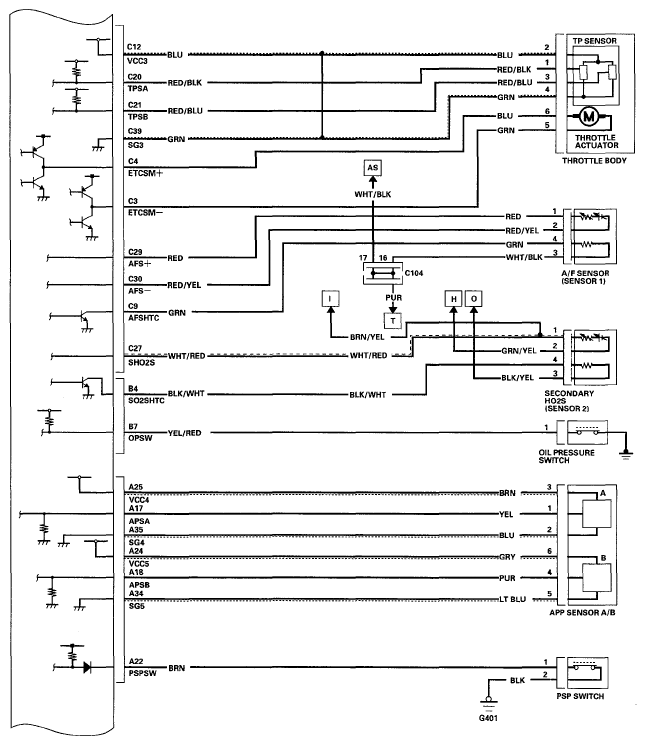

Fig 9: PCM Circuit Diagram (8 Of 14)

G05459637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

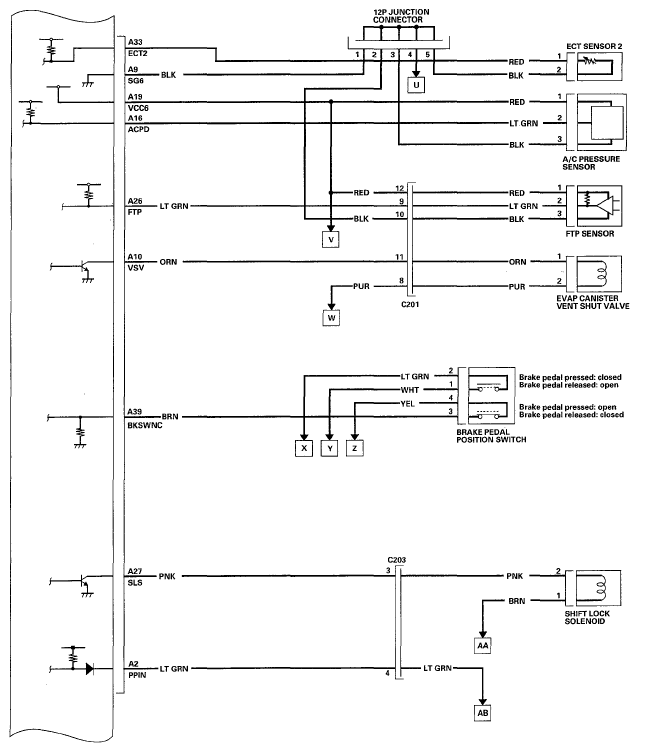

Fig 10: PCM Circuit Diagram (9 Of 14)

G05459638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

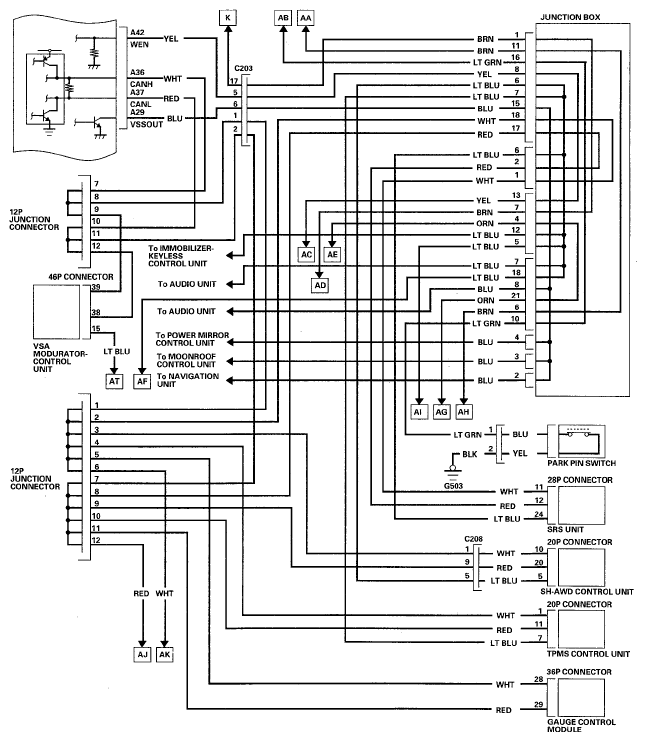

Fig 11: PCM Circuit Diagram (10 Of 14)

G05459639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

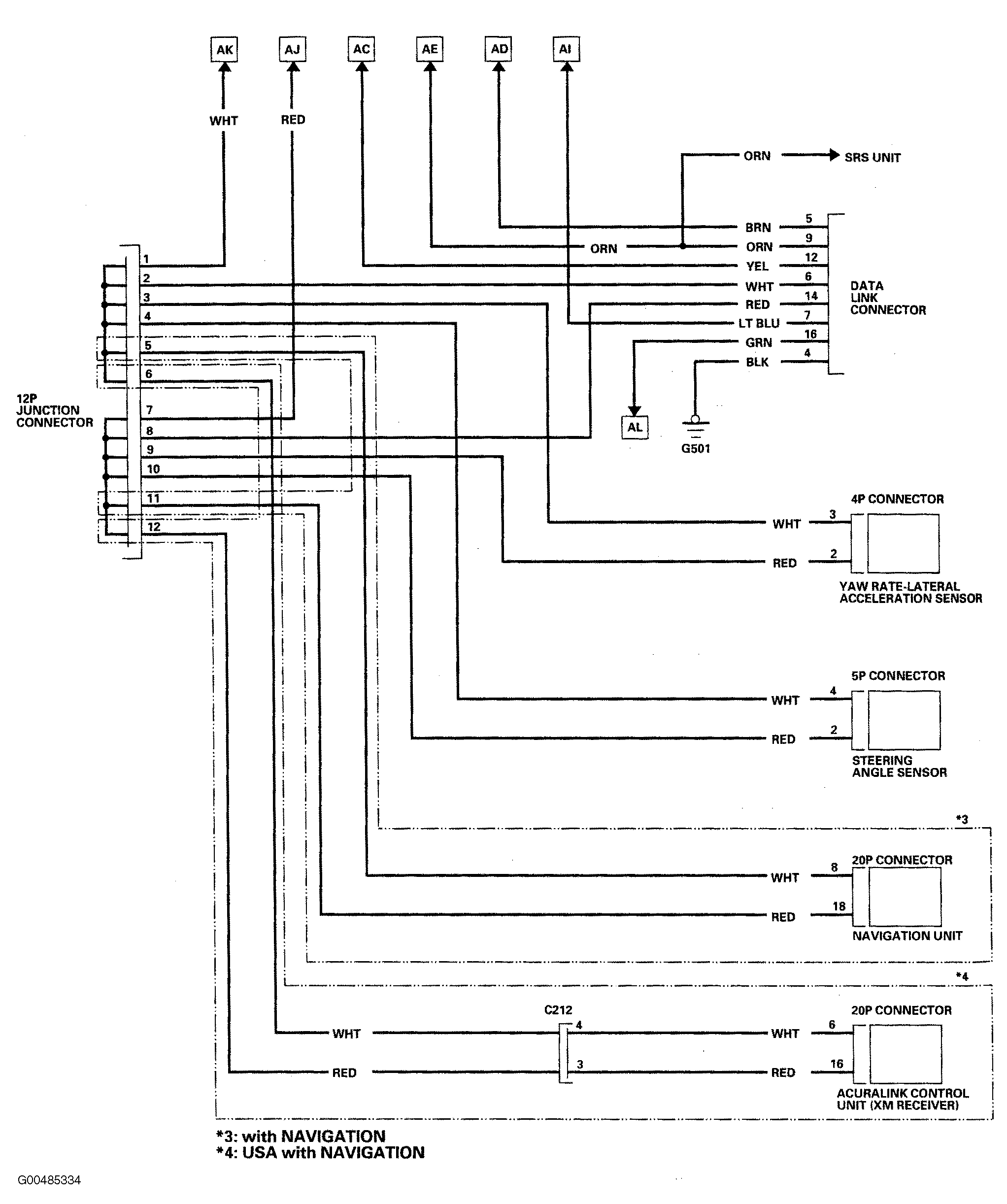

Fig 12: PCM Circuit Diagram (11 Of 14)

G00485334

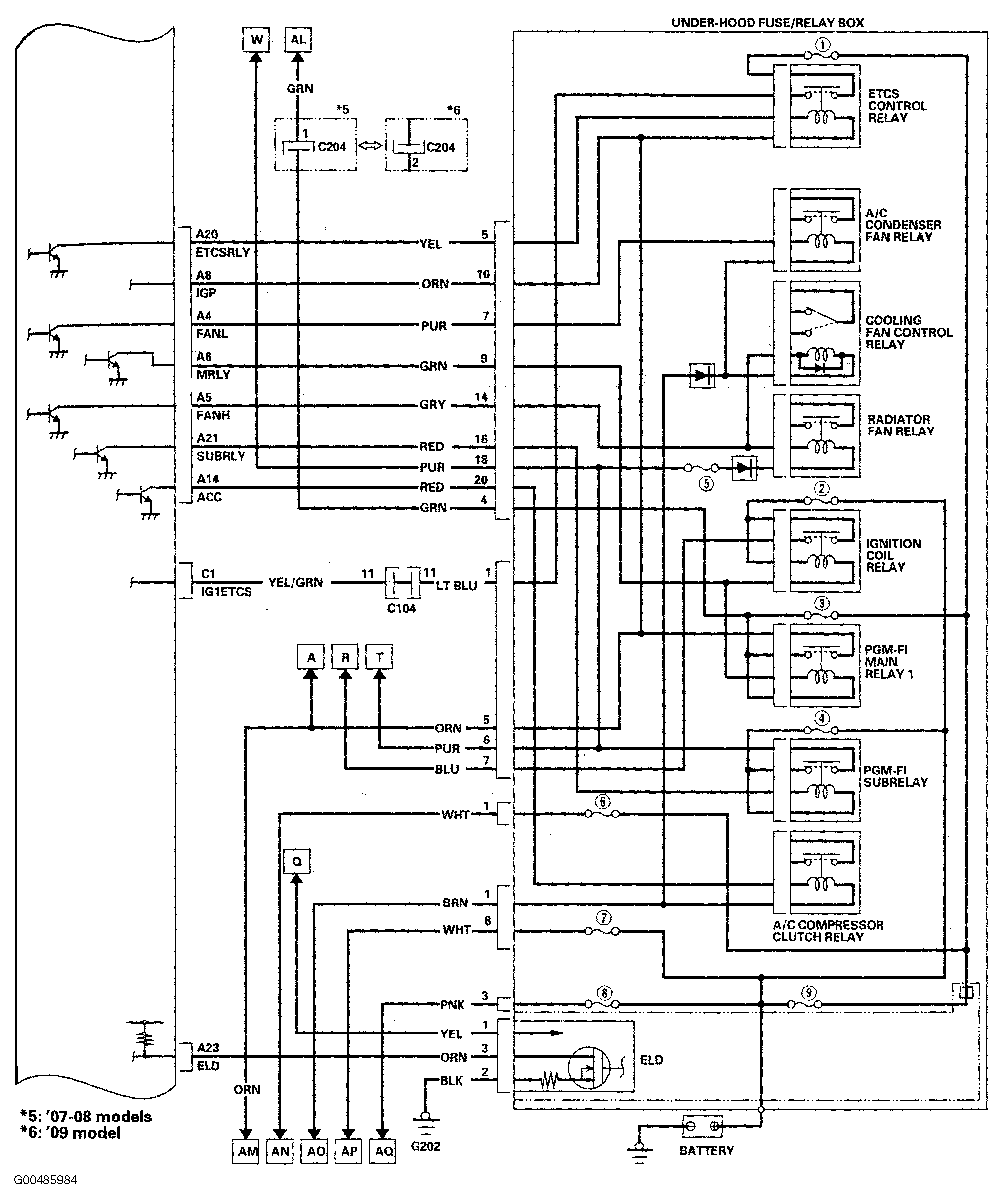

Fig 13: PCM Circuit Diagram (12 Of 14)

G00485984

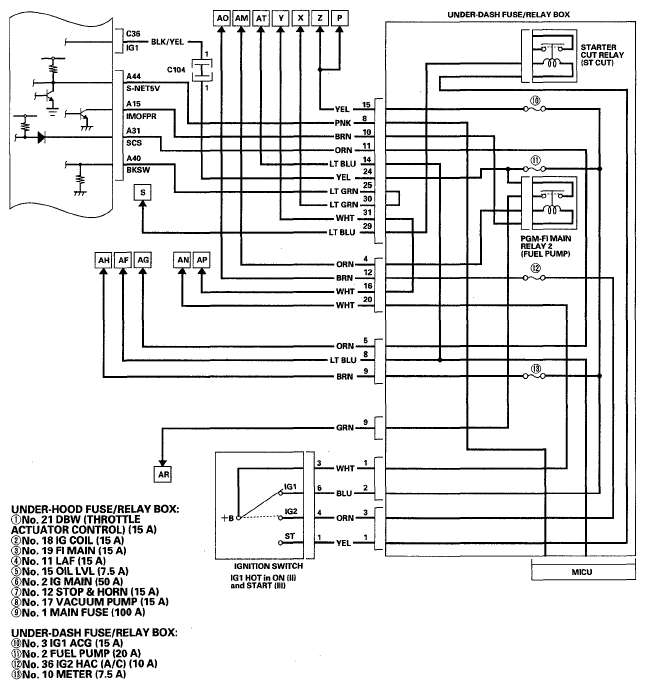

Fig 14: PCM Circuit Diagram (13 Of 14)

G05459642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

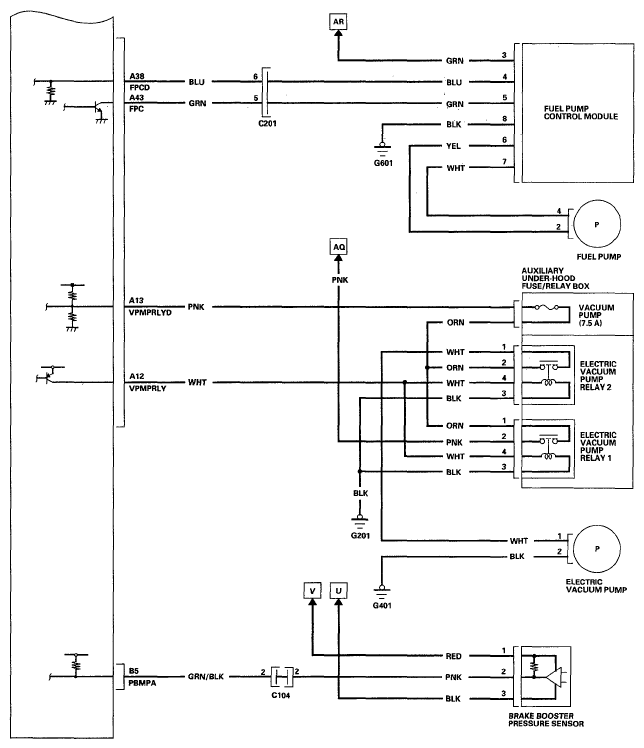

Fig 15: PCM Circuit Diagram (14 Of 14)

G05459643

Courtesy of AMERICAN HONDA MOTOR CO., INC.
