Circuit Diagram

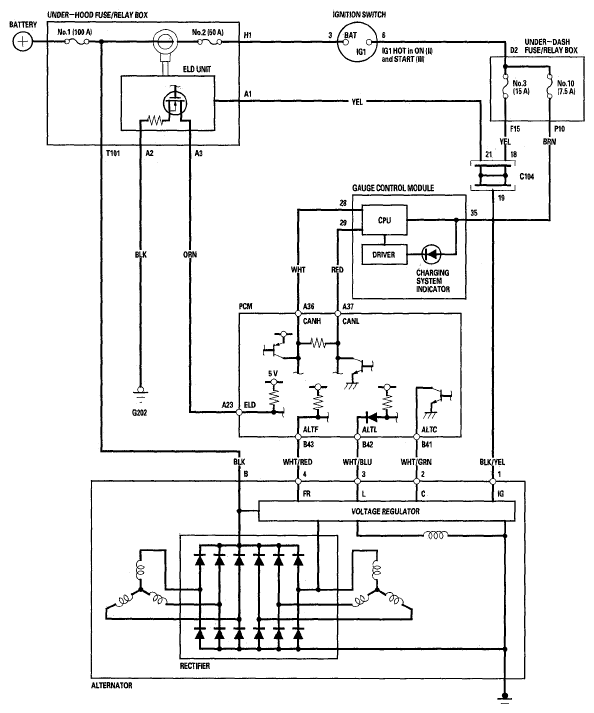

Fig 1: Charging System Circuit Diagram

G05444280

Courtesy of AMERICAN HONDA MOTOR CO., INC.
