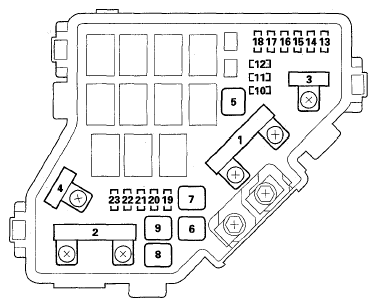

Under-hood Fuse/Relay Box
UNDER-HOOD FUSE/RELAY BOX CHART
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| 1 | 100 A (BAT) | Battery, Power distribution |
| 30 A (SH-AWD) | SH-AWD control unit (via SH-AWD relay) | |
| 2 | 50 A (IG) | Ignition switch |
| 80 A (OPTION) | No. 5, No. 6, No. 7, No. 27, No. 28, No. 29, and No. 31 fuses (in the under-dash fuse/relay box) | |
| 3 | 40 A (VSA MTR) | VSA modulator-control unit |
| 20 A (VSA FSR) | VSA modulator-control unit | |
| 4 | 50 A (H/L) | No. 18, No. 19, No. 20, and No. 21 fuses (in the under-dash fuse/relay box) |
| 40 A (P/W) | No. 24, No. 25, No. 26, No. 30, No. 32, and No. 33 fuses (in the under-dash fuse/relay box) | |
| 6 | 30 A | Radiator fan motor (via radiator fan relay) |
| 7 | 30 A | A/C condenser fan motor (via A/C condenser fan relay) |
| 8 | 30 A | Rear window defogger (via rear window defogger relay) |
| 9 | 40 A | Blower motor (via blower motor relay) |
| 10 | 15A | MICU (turn signal/hazard warning lights circuit) |
| 11 | 15A | PGM-FI subrelay, EVAP canister purge valve (via PGM-FI subrelay), EVAP canister vent shut valve (via PGM-FI subrelay), A/F sensor (Sensor 1) (via PGM-FI subrelay). No. 15 fuse (in the under-hood fuse/relay box) (via PGM-FI subrelay) |
| 12 | 15A | Brake lights, Horns (via MICU) |
| 13 | 20 A | Rear up-down motor (via driver's power seat adjustment switch) ('07 model), Recline motor (via driver's power seat adjustment switch) ('07 model), |
| 14 | 20 A | Front up-down motor (via driver's power seat adjustment switch) ('07 model), Slide motor (via driver's power seat adjustment switch) ('07 model) |
| 15 | 7.5 A | Radiator fan relay (via A/C diode B) |
| 17 | 15A | Electric vacuum pump (via electric vacuum pump relays) |
| 18 | 15A | Ignition coil relay, Ignition coils (via ignition coil relay) |
| 19 | 15A | CKP sensor (via PGM-FI main relay 1), CMP sensor B (via PGM-FI main relay 1), PCM (via PGM-FI main relay 1), ETCS control relay (via PGM-FI main relay 1), Injectors (via PGM-FI main relay 1), PGM-FI main relay 1 (Fl MAIN), PGM-FI main relay 2 (FUEL PUMP) (via PGM-FI main relay 1), Data link connector |
| 20 | 7.5 A | A/C compressor clutch (via A/C compressor clutch relay) |
| 21 | 15A | PCM (via ETCS control relay) |
| 22 | 7.5 A | Power mirror control unit ('07 model). Front individual map lights, Ceiling light. Vanity mirror lights. Door courtesy lights, Ignition key light |
| 23 | 10A | Gauge control module, Navigation unit (with navigation). Navigation display unit (with navigation), AcuraLink control unit (USA models with navigation), Audio unit, MICU, HandsFreeLink control unit (with navigation), Driving position memory switch ('08 model). Power mirror control unit ('08 model) |
