Under-hood Fuse/Relay Box

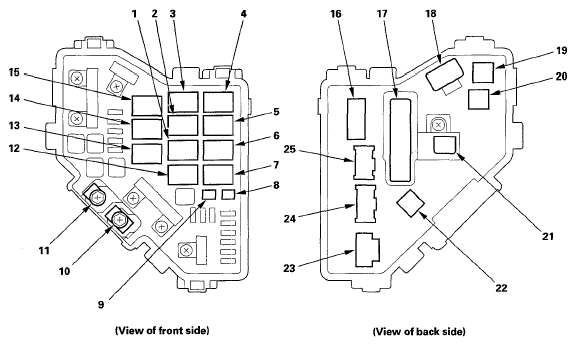

UNDER-HOOD FUSE/RELAY BOX CHART
| Socket | Reference | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (ELD unit) | 21 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| A/C compressor clutch relay | 12 | 4 | ||
| A/C condenser fan relay | 15 | 4 | ||
| B | 22 | 1 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| Blower motor relay | 2 | 4 | ||
| C | 23 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| D | 25 | 8 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| Diode (for A/C condenser fan) | 9 | - | ||
| Diode (for radiator fan) | 8 | - | ||
| E | 24 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| Electronic throttle control system (ETCS) control relay | 14 | 4 | ||
| F | 17 | 20 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| Fan control relay | 4 | 5 | ||
| G | 19 | 1 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| H | 20 | 1 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| Ignition coil relay | 7 | 4 | ||
| J | 16 | 4 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| K | 18 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| PGM-FI main relay 1 (Fl MAIN) | 13 | 4 | ||
| PGM-FI subrelay | 6 | 4 | ||
| Radiator fan relay | 3 | 4 | ||
| Rear window defogger relay | 1 | 4 | ||
| Rear window wiper relay | 5 | 5 | ||
| T101 | 11 | Starter cable (see STARTER CABLE ) | ||
| T102 | 10 | Starter cable (see STARTER CABLE ) |
