Component Location Index

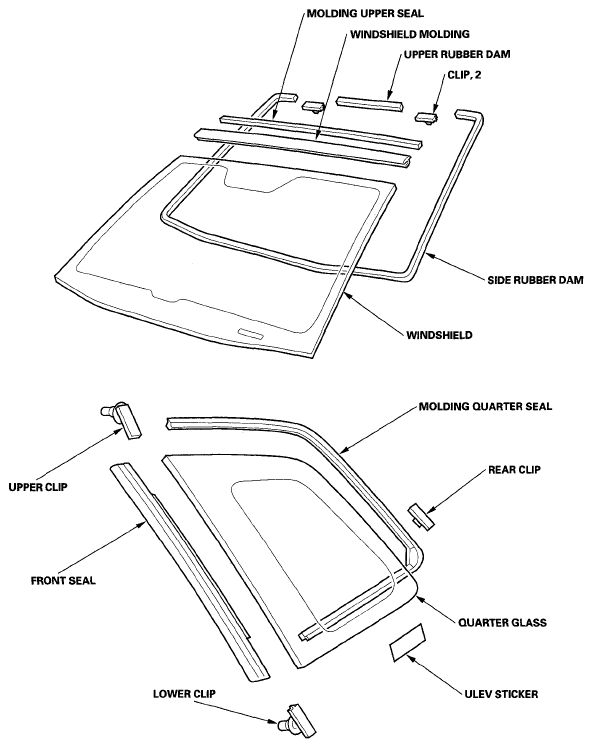

Fig 1: Identifying Glass Component Location (1 Of 2)
G05445863Courtesy of AMERICAN HONDA MOTOR CO., INC.

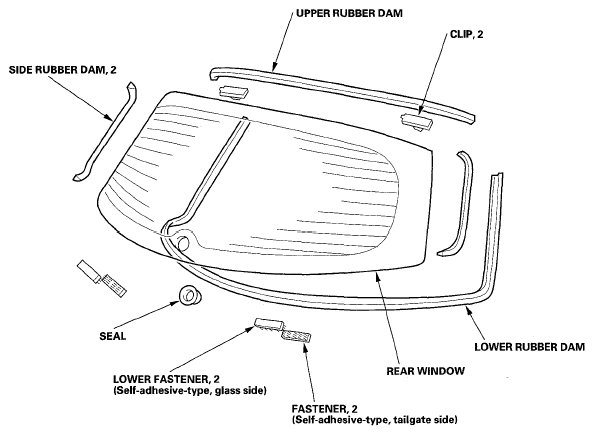

Fig 2: Identifying Glass Component Location (2 Of 2)
G05445864Courtesy of AMERICAN HONDA MOTOR CO., INC.
