Armrest Lock Replacement

NOTE: Take care not to scratch the armrest and related parts.

Remove the center console armrest (see CENTER CONSOLE ARMREST REMOVAL/INSTALLATION )
Remove the screws, then remove the armrest lock (A) from the center console armrest (B).

Fig 1: Identifying Armrest Lock, Center Console Armrest And Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

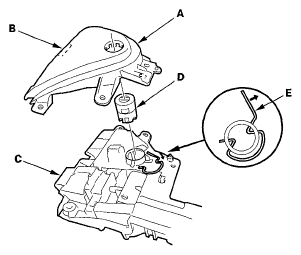

Pull out the armrest lock cover (A) to detach the hooks (B) from the armrest lock (C). If necessary, remove the key cylinder (D) by pulling out the spring (E).

Fig 2: Identifying Armrest Lock Cover, Armrest Lock And Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armrest lock in the reverse order of removal.
