Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
Driver Position Memory System (DPMS)
>>
Circuit Diagram - Power Seat
Circuit Diagram - Power Seat

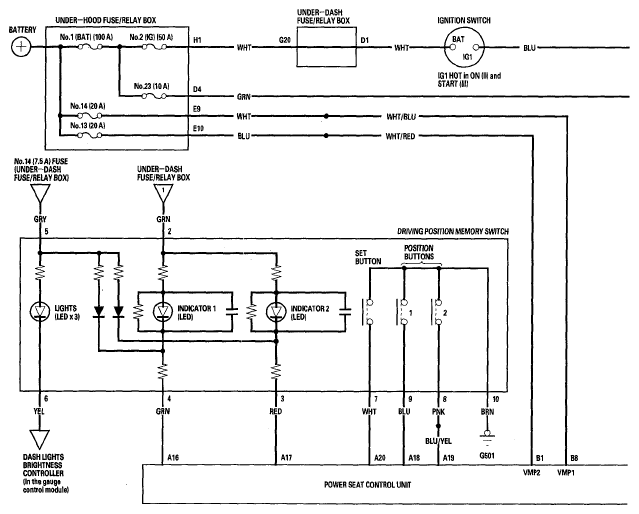

Fig 1: Power Seat - Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

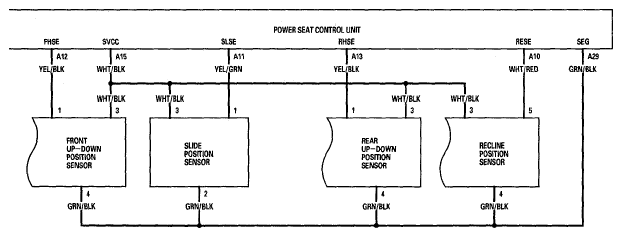

Fig 2: Power Seat - Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

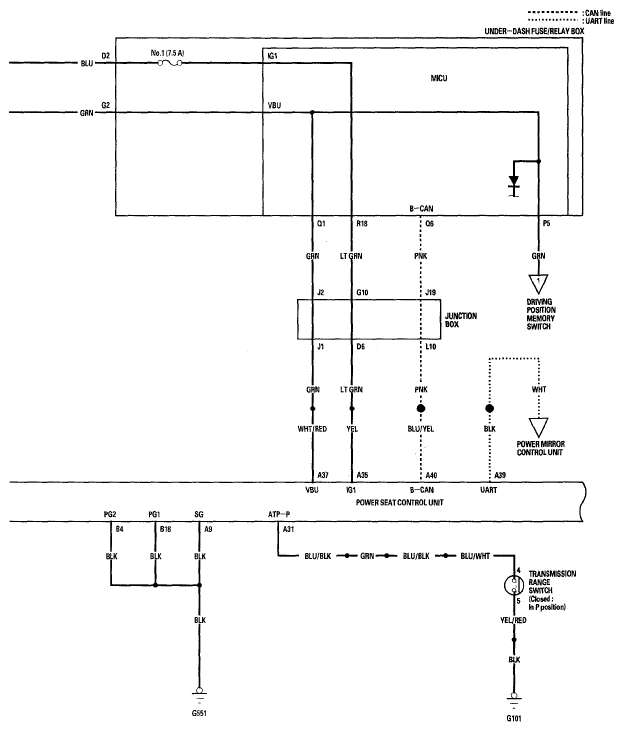

Fig 3: Power Seat - Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

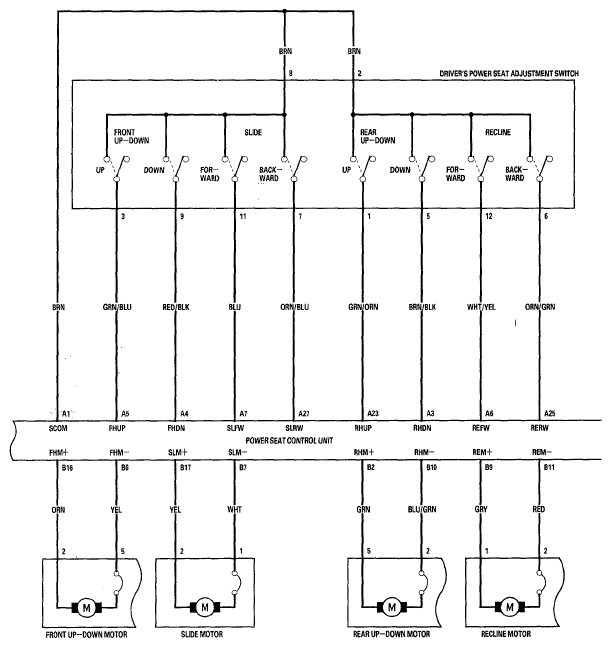

Fig 4: Power Seat - Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
