Acura
>>
2007
>>
RDX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
HANDSFREELINK System
>>
Circuit Diagram
>>
With Navigation System
With Navigation System

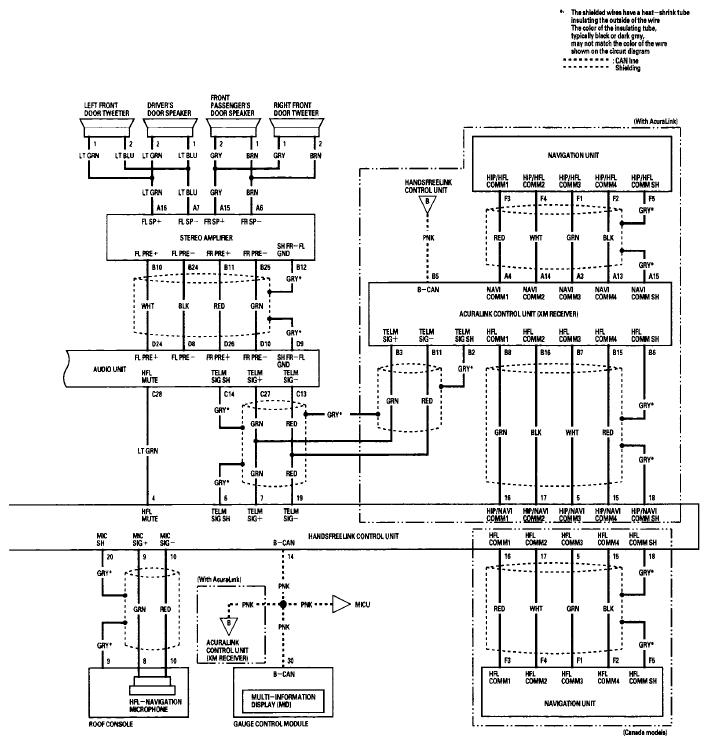

Fig 1: HandsFreelink System Circuit Diagram With Navigation System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

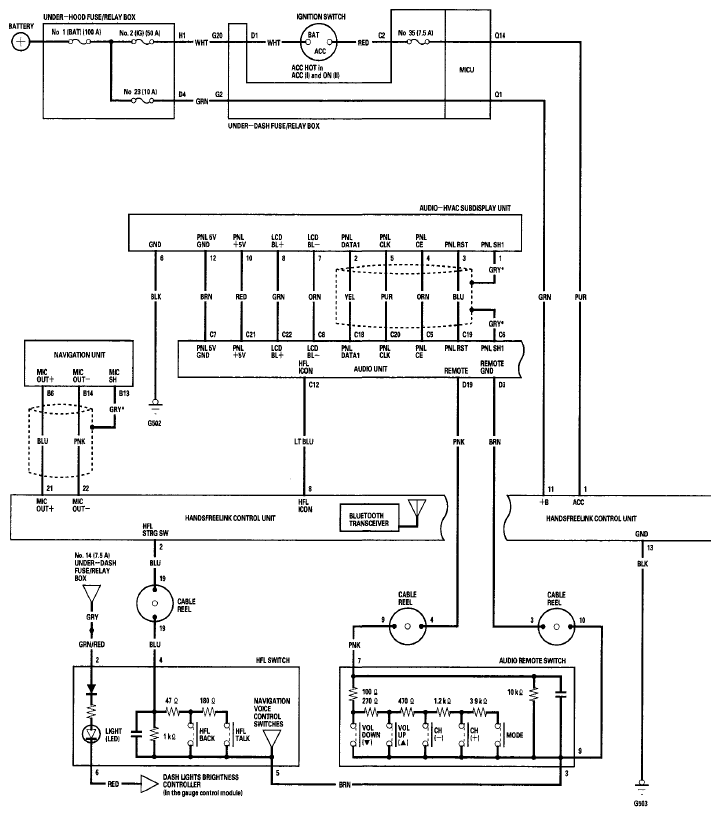

Fig 2: HandsFreelink System Circuit Diagram With Navigation System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
