How to Use the Audio System Self-diagnostic Function
- Turn the ignition switch to ON (II). Turn the audio unit off.

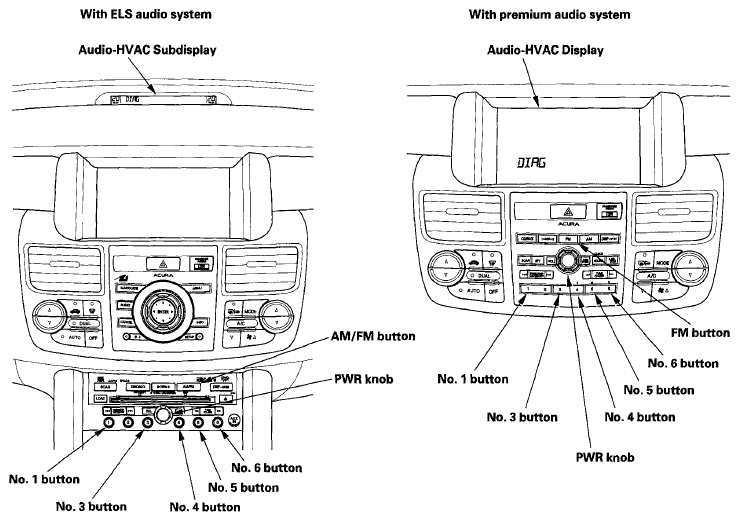

- Push and hold the No. 1 and No. 6 buttons. While holding the buttons, push the PWR knob to on. Release the buttons and the self-diagnostic function begins. With ELS audio system With premium audio system
- By pressing a preset button, the input will trigger the diagnostic mode that is assigned to that preset switch.
No. 3 button
Entire LCD lighting/light-out mode: Turns on/off the entire LCD to show the presence or absence of an LCD segment failure.
No. 4 button
Illumination level indication mode: Indicates the duty cycle for the illumination dimmer control of the gauge assembly.
Gauge dimmer control values:
Headlights off: OFF
Headlights on: 01 (max low) through 22 (max high)
No. 5 button
Vehicle speed pulse indication mode: Indicates the Vehicle speed pulse.
AM/FM or FM button (Push and hold 5 sec.)
Reception level check mode: Indicates the reception level. When entering the reception level check mode, the AM/ FM button or FM button is used to change the main/sub antenna.
- The self-diagnostic function ends when you turn the audio unit off, or turn the ignition switch to LOCK (0).NOTE: Any other diagnostic screens shown are for factory use only.
