Multiplex Integrated Control System
>>
Component Location Index
Component Location Index

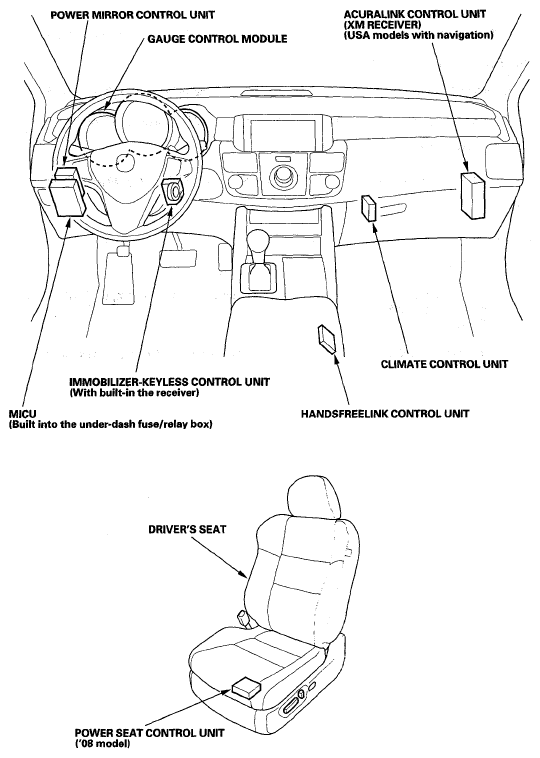

Fig 1: Identifying Location Of Multiplex Integrated Control System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
