ATF Cooler Hose Replacement

  1. Slide the ATF cooler hoses (A) over the ATF cooler lines (B) until the hose ends contact with the bulge (C) of the ATF cooler line, and secure the hoses with the clips (D) at 2-4 mm (0.1-0.2 in.) (E)from the hose end.

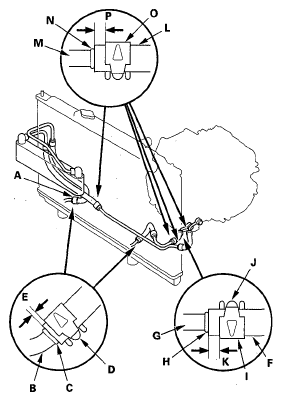

    Fig 1: Identifying ATF Cooler Hoses, ATF Cooler Lines And Hoses Clips
    G05485762Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Slide the ATF cooler outlet hose (F) over the ATF cooler outlet line (G) at the transmission until the hose end contacts with the bulge (H) of the ATF cooler line. Secure the hose with the clip (I) facing tab (J) up at 6-8 mm (0.2-0.3 in.) (K) from the hose end.
  3. Slide the ATF cooler hoses (L) over the ATF cooler lines (M) until the hose ends contact with the bulge (N) of the ATF cooler line, and secure the hoses with the clips (O) at 6-8 mm (0.2-0.3 in.) (P) from the hose end.
