Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Relays And Control Unit Locations
>>
Roof and Console
Roof and Console

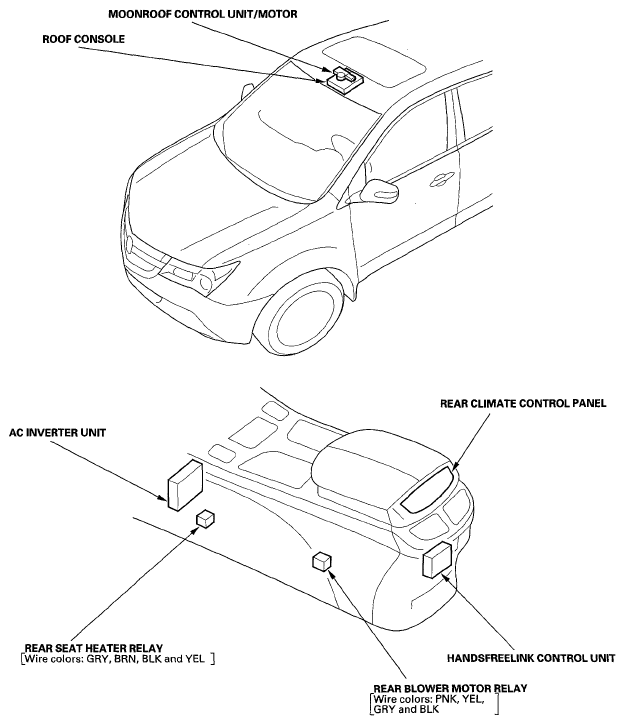

Fig 1: Identifying Relay And Control Unit Locations (Roof And Console)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
