CD Changer Connector Inputs and Outputs ('03-04 Models)

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For Rear Entertainment Circuit Diagrams, refer to Audio System Circuit Diagrams (see 03-04 MODELS WITH REAR ENTERTAINMENT SYSTEM ).

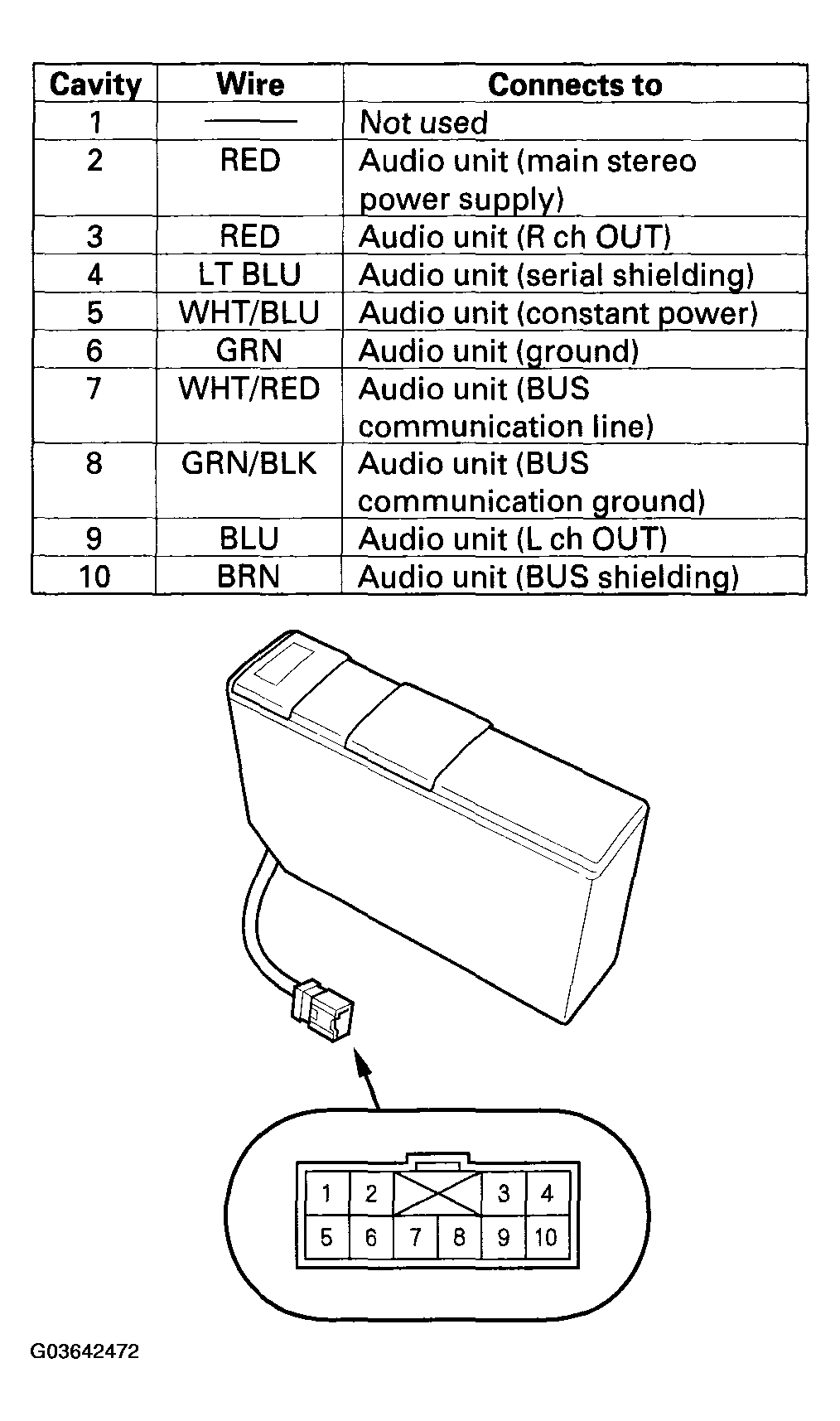

Fig 1: Identifying CD Changer Connector Inputs And Outputs ('03-04 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
