'03 Model

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the 26P connector (A) from the front stereo amplifier (B).

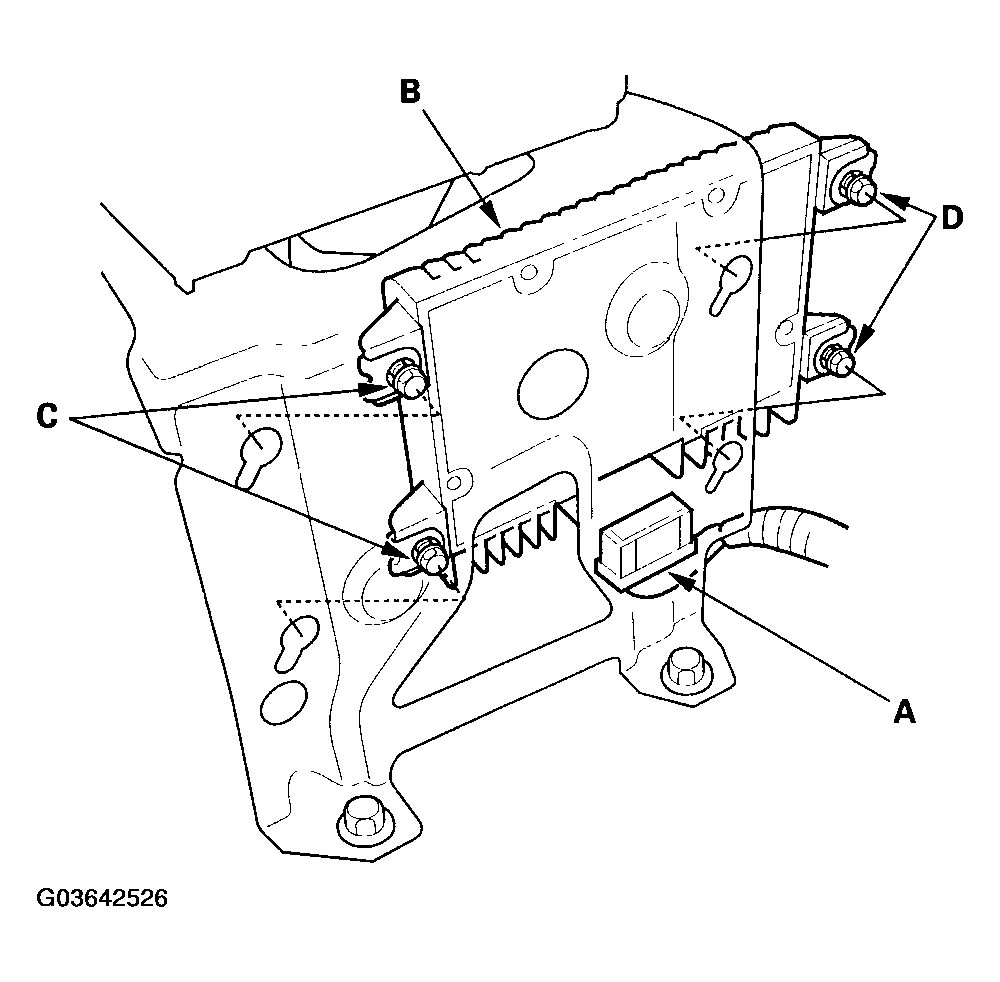

    Fig 1: Disconnecting 26P Connector From Front Stereo Amplifier
    G03642526Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Loosen the two front mounting bolts (C) and remove the two rear mount bolts (D), then remove the front stereo amplifier.
  4. Install the amplifier in the reverse order of removal.
