Tailgate Support Strut Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

With the help of an assistant, use a flat-tip screwdriver (A) to pry the support strut clips (B) from each end of the support strut (C) at the tailgate and body, then release the support strut from the pivot bolts (D). Do not remove the clips from the support strut.

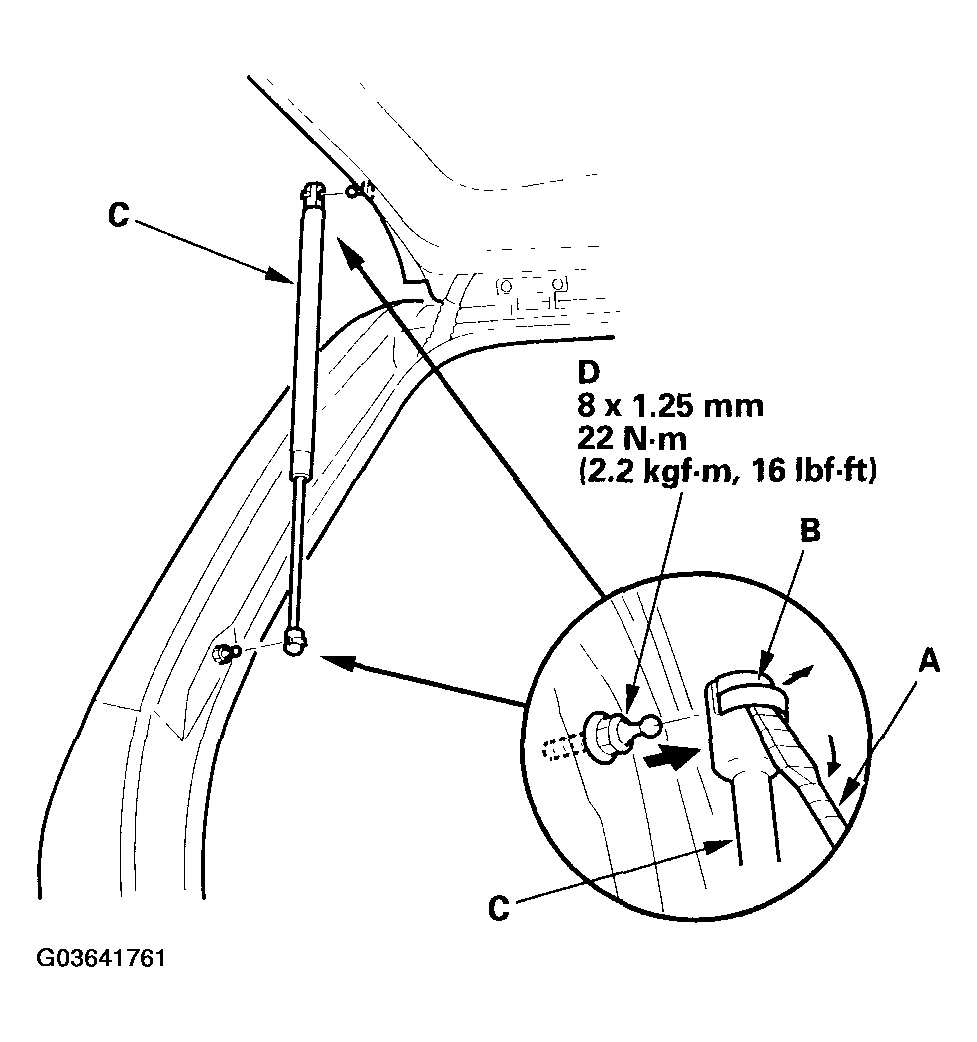

Fig 1: Prying Support Strut Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set the clips (A) to the original position, then reattach the support strut (B) on the pivot bolts (C) by pushing on the support strut.

Fig 2: Setting Clips To Original Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
