Left Second Row Seat Disassembly/Reassembly

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to kink the seat-back recline cables.
Replace any damaged clips as new ones.
Make sure the seat-back recline cables are connected securely. If necessary, adjust the cable tension (see step 10 in SECOND ROW SEAT-BACK RECLINE LEVER REPLACEMENT ).
To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.

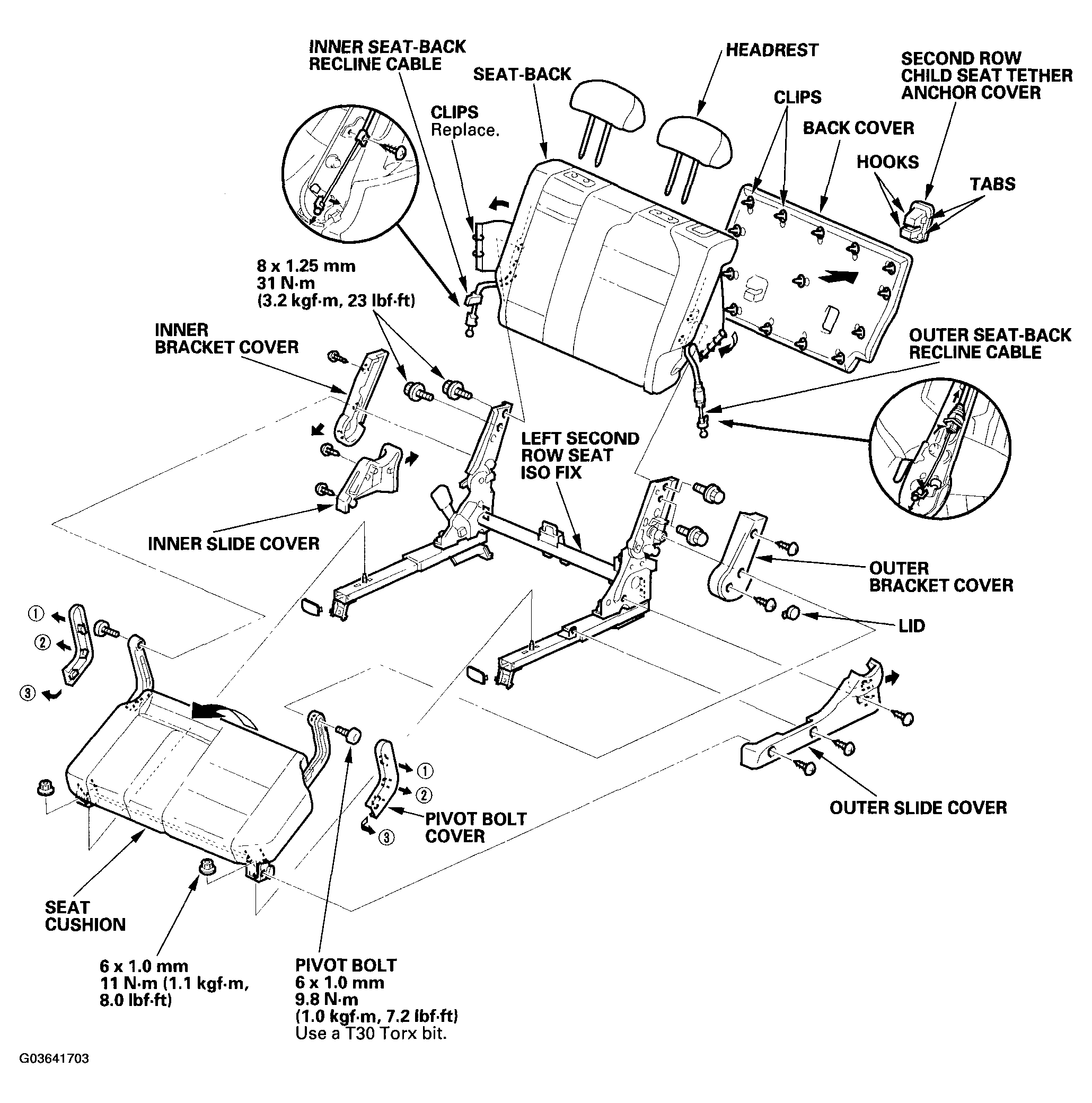

Fig 1: Left Second Row Seat Disassembly/Reassembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
