Throttle Cable Removal/Installation

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the throttle cable cover (see THROTTLE CABLE ADJUSTMENT ).

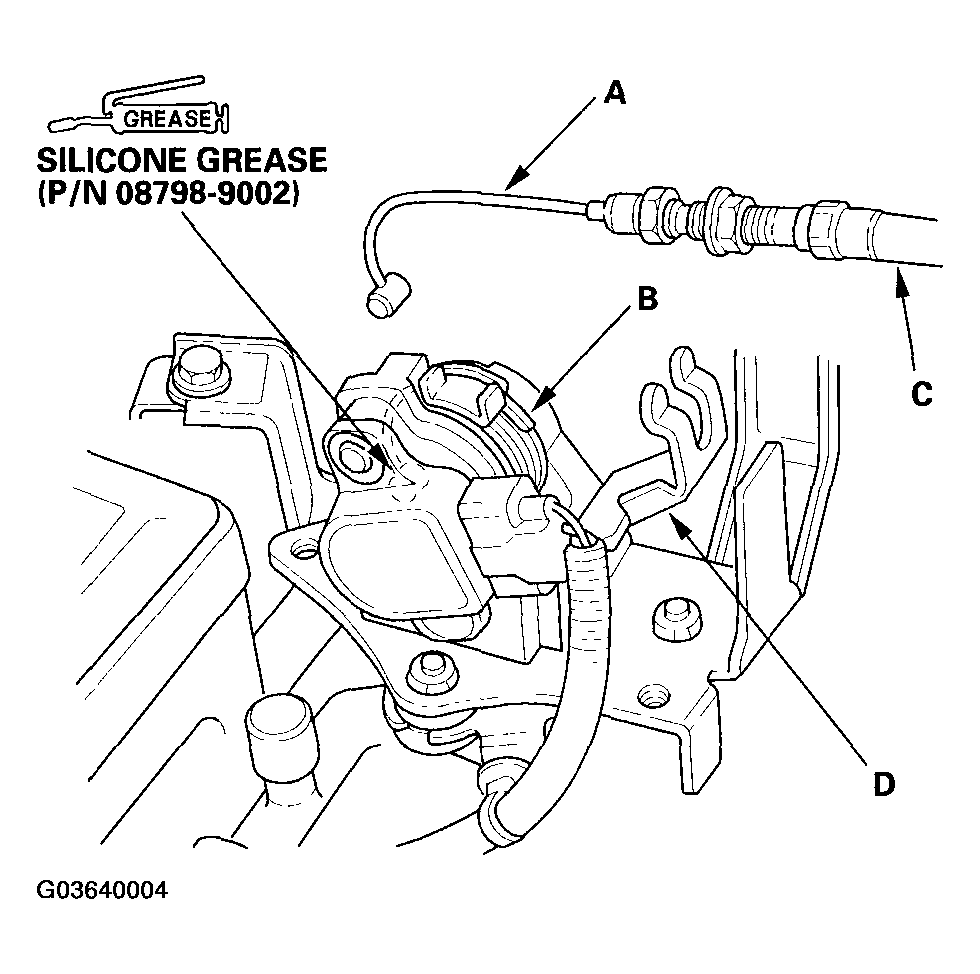

Fully open the throttle valve, then remove the throttle cable (A) from the throttle link (B).

Fig 1: Removing Throttle Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable housing (C) from the cable bracket (D).

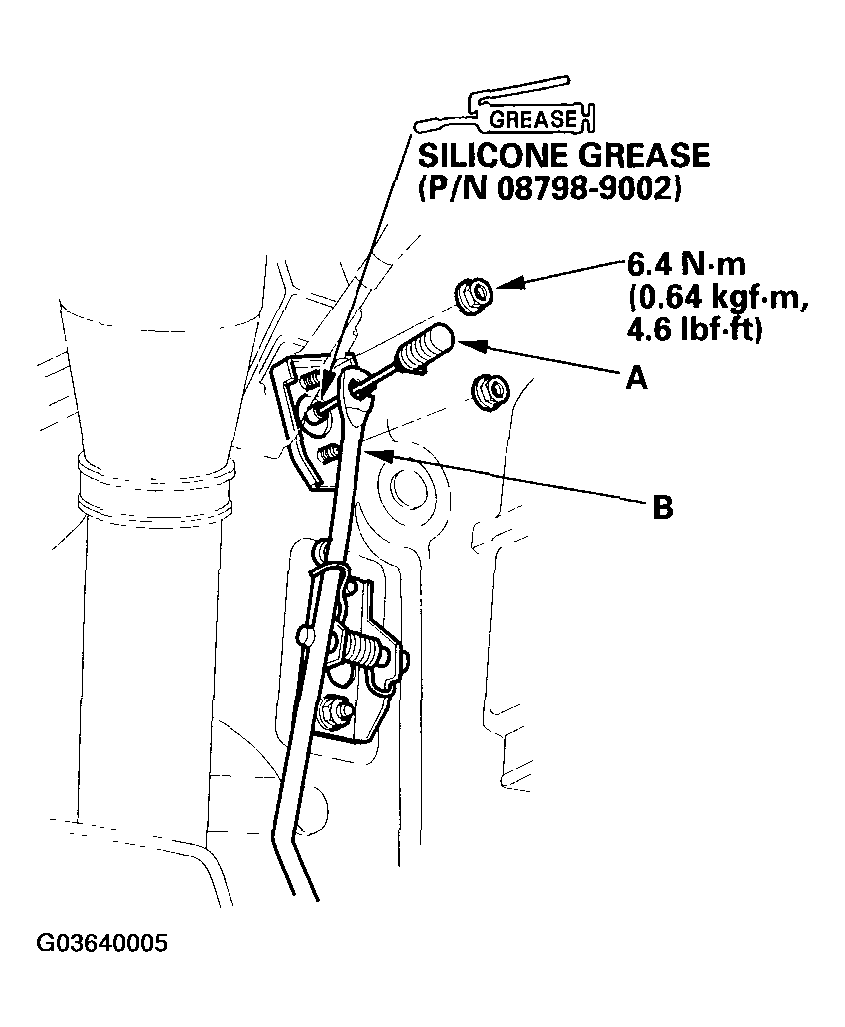

Remove the throttle cable (A) from the accelerator pedal (B).

Fig 2: Removing Throttle Cable From Accelerator Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cable in the reverse order of removal.
Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator fan comes on, then let it idle.
Hold the cable, removing all slack from it.
Set the locknut on the cable bracket (A).

Fig 3: Setting Locknut On Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Adjust the adjusting nut (B) so that its free play is 0 mm.
Remove the cable from the cable bracket.
Reset the adjusting nut and tighten the locknut (C).
With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
