DTC P1745: Problem in Shift Control System; Servo Control Valve Stuck OFF or Servo Control Valve Stuck ON: Notes

Fig 1: Servo Control Valve (Stuck OFF) Or Servo Control Valve (Stuck ON) - System Diagram
G04823084
Fig 2: Gear Position To Shift Status Graph
G04823085

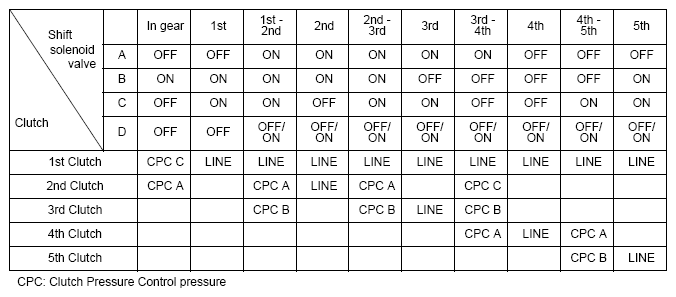

Fig 3: Shift Solenoid Valve And Clutch Specification Chart
G04836091
