DTC P0977: Open in Shift Solenoid Valve B Circuit: Notes

Fig 1: Open In Shift Solenoid Valve B - Circuit Diagram

G04816885

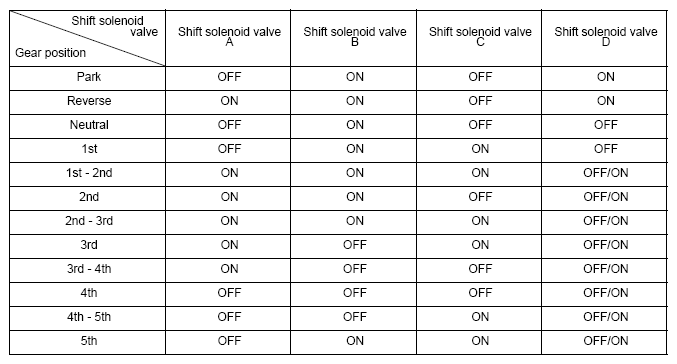

Fig 2: Shift Solenoid Valve And Gear Position Specification Chart

G04836045
