DTC P0974: Open in Shift Solenoid Valve A Circuit: Notes

Fig 1: Open In Shift Solenoid Valve A - Circuit Diagram

G04816881

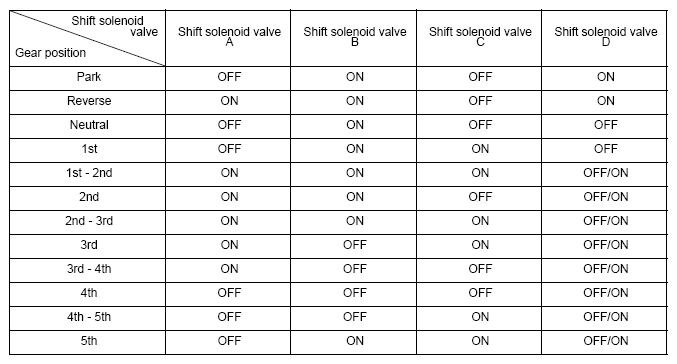

Fig 2: Shift Solenoid Valve And Gear Position Specification Chart

G04836041
