Injector Base Removal and Installation: Installation

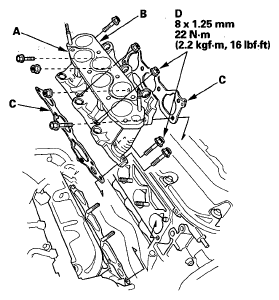

  1. Install the front injector base (A) and rear injector base (B) with new gaskets (C), and tighten the bolts/ nuts (D) in a crisscross pattern in three steps, beginning with the inner nuts.
    NOTE: Front injector base gasket is different from rear one. Do not mix injector base gasket types.
    Fig 1: Front Injector Base, Rear Injector Base, Gaskets, And Bolts/ Nuts With Torque Specification
    G05484864Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the knock sensor connector (A) and harness bracket mount bolt (B).
    Fig 2: Knock Sensor Connector And Harness Bracket Mount Bolt With Torque Specification
    G05484865Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the injectors (see INJECTOR REPLACEMENT ).
  4. Install the intake manifold (see INSTALLATION  ).
  5. Install P/S pump and P/S line bracket (see step 27 on CYLINDER HEAD INSTALLATION ).
  6. Install the drive belt (see DRIVE BELT INSPECTION ).
  7. Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs about 2 seconds, the fuel pressure in the fuel line rises. Repeat this three times, then check for fuel leaks.
