Air Cleaner Element Inspection/ Replacement

Open the air cleaner housing cover (A).

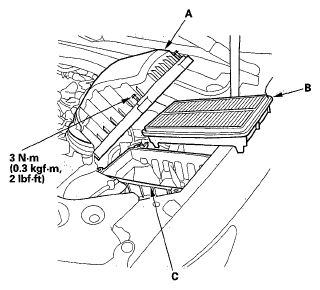

Fig 1: Air Cleaner Housing Cover And Air Cleaner Element With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner element (B) from the air cleaner housing (C).
Check the air cleaner element for damage or clogging. If there is damage or clogging, replace the air cleaner element.
NOTE: Do not use compressed air to clean the air cleaner element.
Clean and remove any debris from inside the air cleaner housing.
Install the parts in the reverse order of removal.

If you did not replace the air cleaner element, this procedure is complete.
If the maintenance minder required to the air cleaner element, reset the maintenance minde(See RESETTING THE MAINTENANCE INFORMATION DISPLAY .
If you replace the air cleaner element, reset the PCM with the HDS, and do the PCM idle learn procedure(See PCM IDLE LEARN PROCEDURE ).
