Engine Mount Replacement

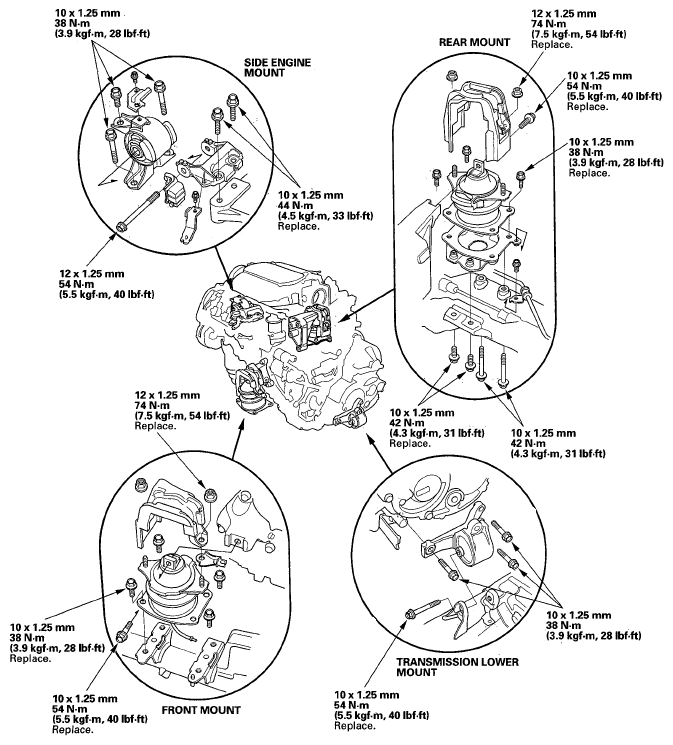

Fig 1: Engine Mount Bolts Tightening Torque With Torque Specifications

G05484606

Courtesy of AMERICAN HONDA MOTOR CO., INC.
