Home >> Acura >> 2007 >> MDX >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan Controls >> Circuit Diagram

Circuit Diagram

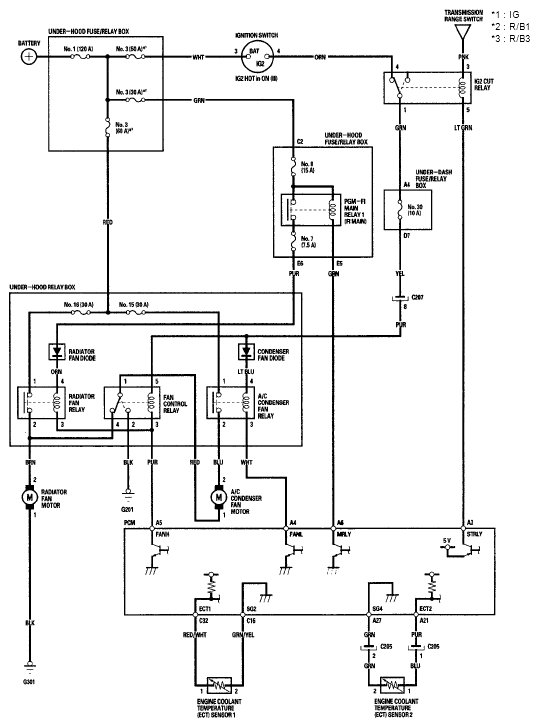

Fig 1: Fan Controls Circuit Diagram

G05484890

Courtesy of AMERICAN HONDA MOTOR CO., INC.
