EVAP Canister Replacement

  1. Remove the EVAP canister cover (A). Open the clamps (B).

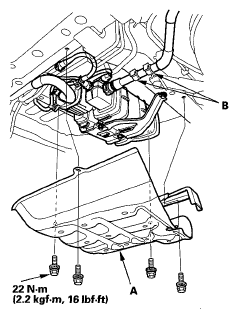

    Fig 1: EVAP Canister Cover And Clamps With Torque Specification
    G05485388Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor connector (B), and the EVAP canister vent shut valve connector (C).

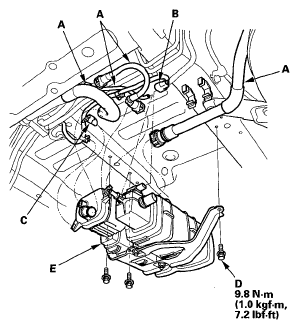

    Fig 2: Hoses, FTP Sensor Connector And EVAP Canister Vent Shut Valve Connector With Torque Specification
    G05485389Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D).
  4. Remove the EVAP canister assembly (E).
  5. Remove the EVAP canister bracket (A).
    Fig 3: EVAP Canister Bracket With Torque Specification
    G05485390Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Pry the lock tabs outward (A), then remove the EVAP canister vent shut valve (B).
    NOTE: Be careful not to damage the lock tabs.
    Fig 4: EVAP Canister Vent Shut Valve With O-Ring With Torque Specification
    G05485391Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the EVAP canister vent shut valve in the new EVAP canister with a new O-ring (C).
    NOTE: Do not coat the O-ring with oil.
  8. Install the parts in the reverse order of removal.
