Component Location Index

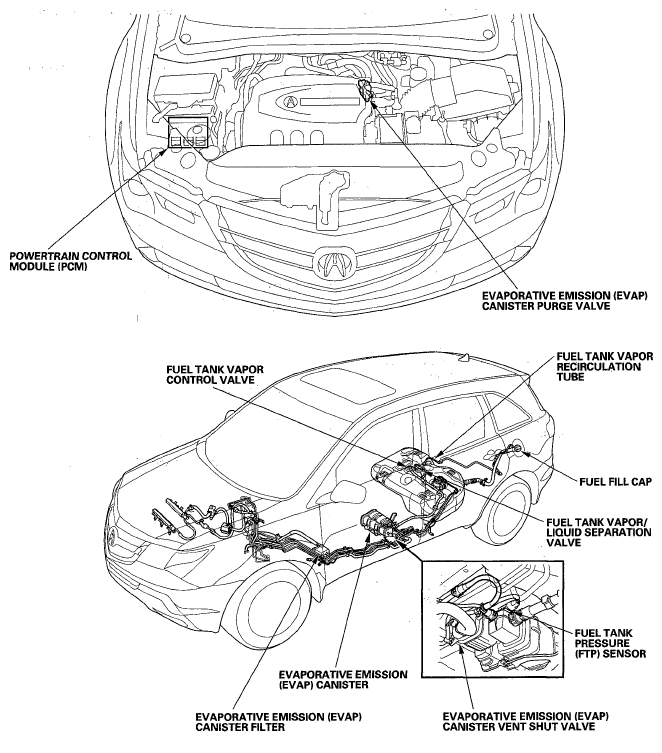

Fig 1: Identifying EVAP System Components Location

G05485342

Courtesy of AMERICAN HONDA MOTOR CO., INC.
