OEM Connector End Views
>>
Connector End Views
>>
Roll Rate Sensor Connector End View
Roll Rate Sensor Connector End View

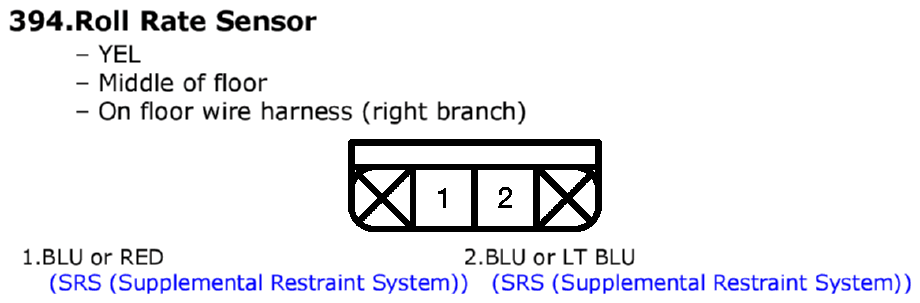

Fig 1: Roll Rate Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
