Front Mode Control Motor Connector End View

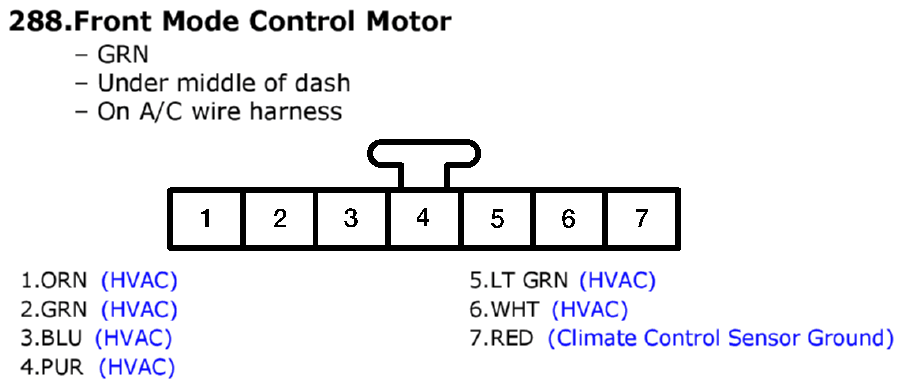

Fig 1: Front Mode Control Motor Connector End View

GHHW7715

Courtesy of AMERICAN HONDA MOTOR CO., INC.
