Engine Mount Control Solenoid Connector End View

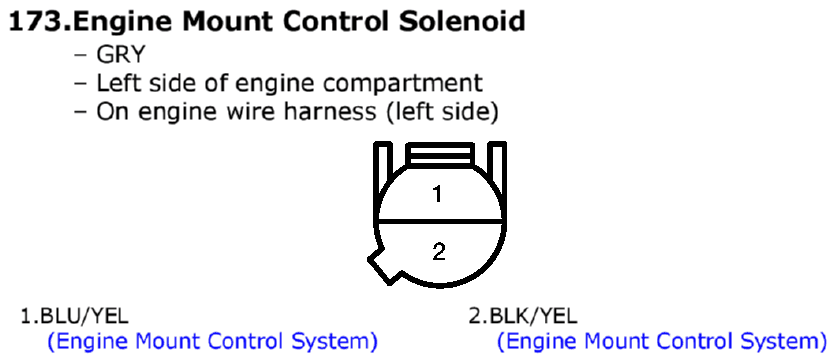

Fig 1: Engine Mount Control Solenoid Connector End View

GHHW7600

Courtesy of AMERICAN HONDA MOTOR CO., INC.
