Circuit Diagram - Power Tilt/Telescopic Steering

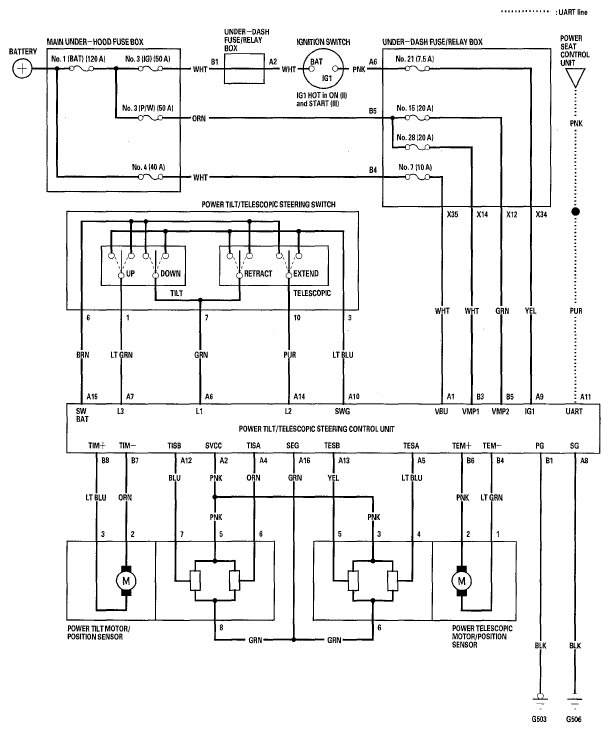

Fig 1: Circuit Diagram - Power Tilt/Telescopic Steering

G05488227

Courtesy of AMERICAN HONDA MOTOR CO., INC.
