Recline motor
- Remove the driver's seat (see
FRONT SEAT REMOVAL/INSTALLATION
).

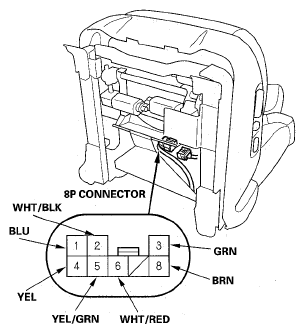

- Disconnect the power seat wire harness 8P connector from the recline motor/lumbar support motor subharness.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Test motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the motor does not run or fails to run smoothly, check for an open in the wire between the 8P connector and recline motor. If the harness is OK, replace the recline motor (see
FRONT SEAT RECLINE MOTOR REPLACEMENT
).
