TPMS Control Unit Connector End View

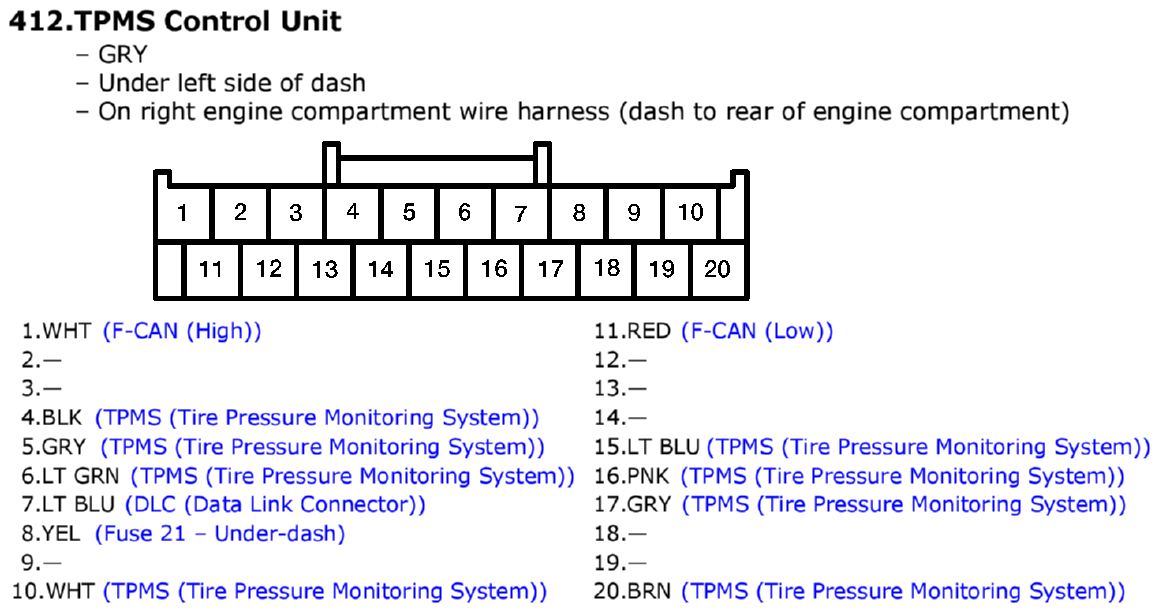

Fig 1: TPMS Control Unit Connector End View

GHHW7839

Courtesy of AMERICAN HONDA MOTOR CO., INC.
