Component Location Index

Front Suspension

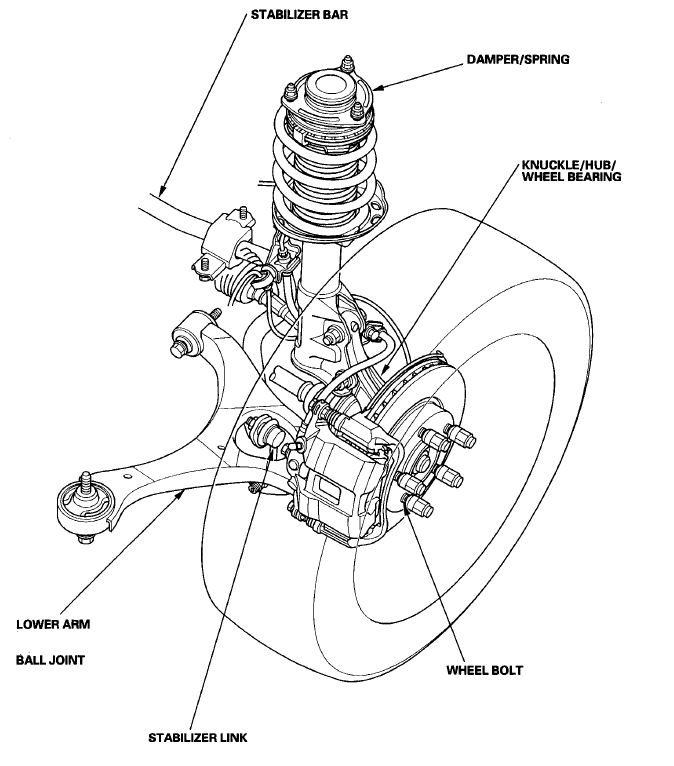

Fig 1: Identifying Front Suspension Component Location
G06267684Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear Suspension

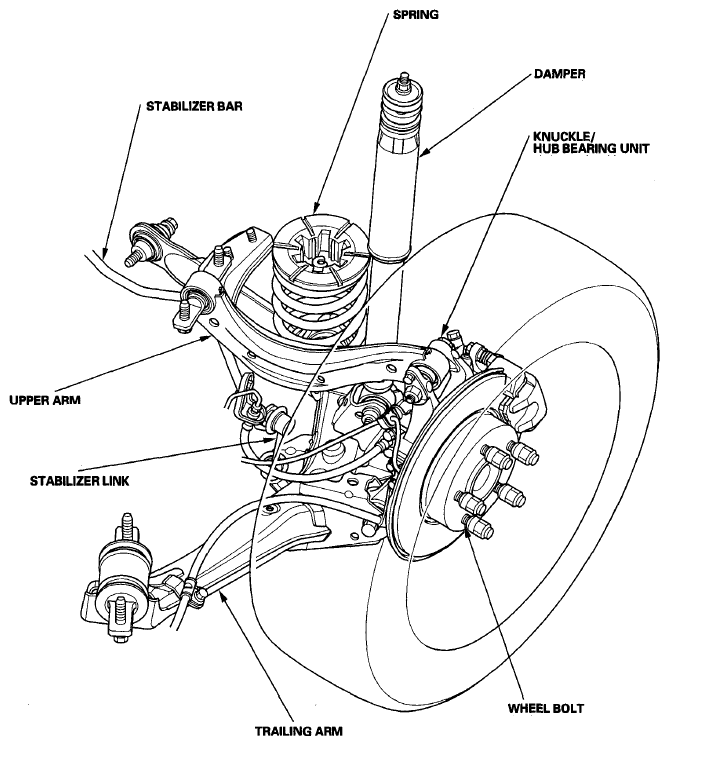

Fig 2: Identifying Rear Suspension Component Location
G06267685Courtesy of AMERICAN HONDA MOTOR CO., INC.
