Front Brake Duct Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the bumper and the body
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION )
  2. Remove the bolts, and release the hooks (A) from the front inner fender (B), then remove the front brake duct (C)

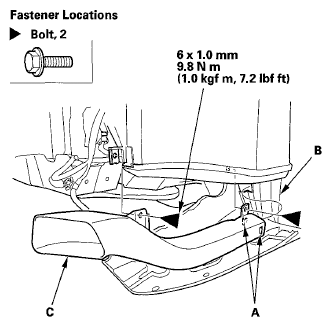

    Fig 1: Hooks, Front Inner Fender , Front Brake Duct And Bolts With Torque Specifications
    G05988519Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the duct in the reverse order of removal, and push the clips into place securely
