CMP Pulse Plate B Replacement

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).
  2. Remove camshaft position (CMP) sensor B (see CMP SENSOR B REPLACEMENT ).
  3. Hold the camshaft with an open-end wrench, then loosen the bolt.
    Fig 1: Loosening Bolts With Open-End Wrench
    G06265579Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove camshaft position (CMP) pulse plate B.

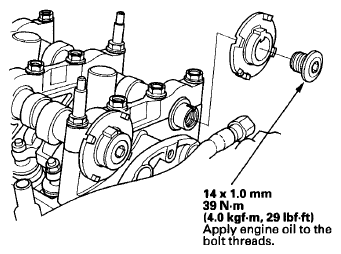

    Fig 2: Camshaft Position (CMP) Pulse Plate With Torque Specifications
    G06265580Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install CMP pulse plate B in the reverse order of removal.
