Component Location Index

K20Z2

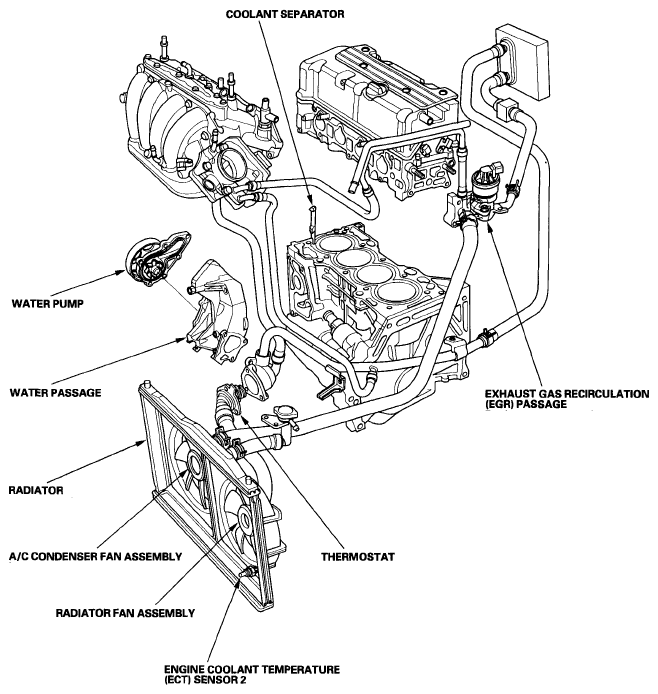

Fig 1: Identifying Cooling System Component Location Index (K20Z2)
G06264407Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z3

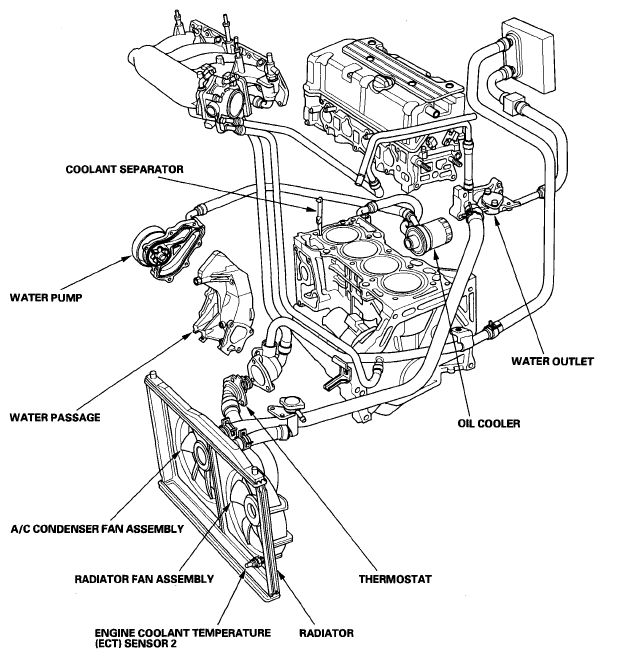

Fig 2: Identifying Cooling System Component Location Index (K20Z3)
G06264408Courtesy of AMERICAN HONDA MOTOR CO., INC.
