Circuit Diagram

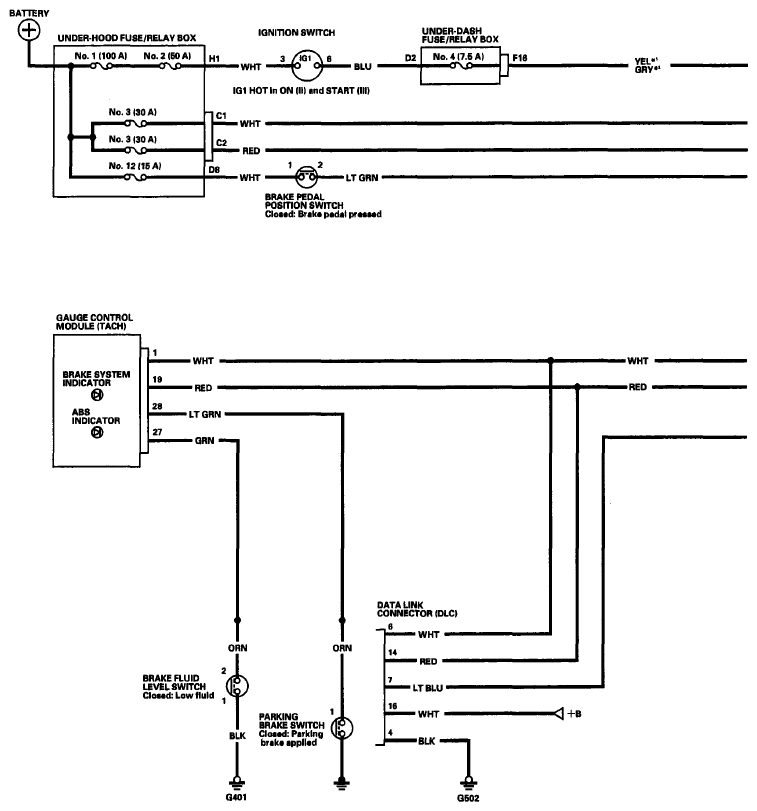

Fig 1: ABS Circuit Diagram (1 Of 2)

G06267875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

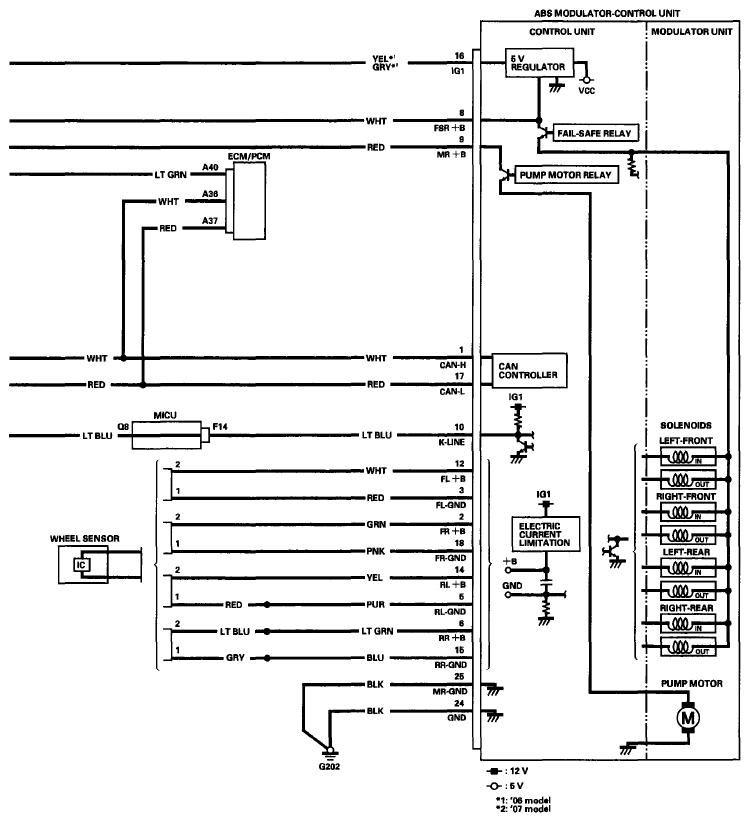

Fig 2: ABS Circuit Diagram (2 Of 2)

G06267876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

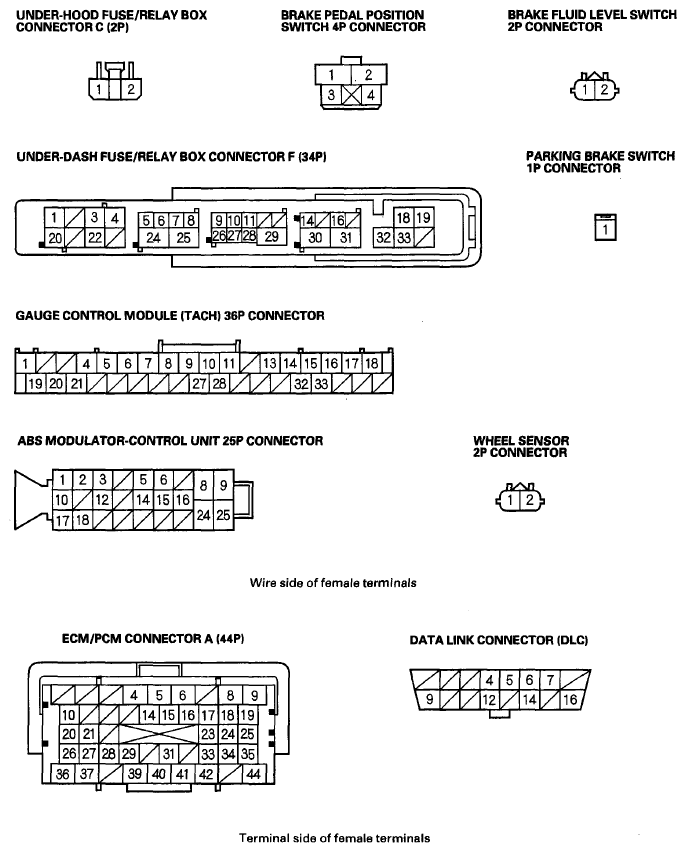

Fig 3: Identifying ABS Connectors Terminals

G06267877

Courtesy of AMERICAN HONDA MOTOR CO., INC.
